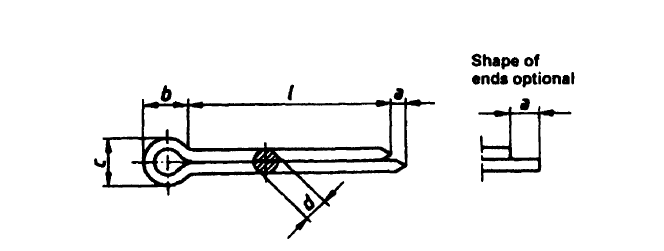

| Nominal Size | 0.6 | 0.8 | 1 | 1.2 | 1.8 | 2 | 2.5 | 2 | 3.2 | 4 | 5 | 6.3 | 8 | 10 | 13 | 15 | 29 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | max. | 0.5 | 0.7 | 0.9 | 1.0 | 1.4 | 1.8 | 2.3 | 2.9 | 3.7 | 4.6 | 5.9 | 7.5 | 9.5 | 12.4 | 15.4 | 19.3 | |
| min. | 0.4 | 0.6 | 0.8 | 0.9 | 1.3 | 1.7 | 2.1 | 2.7 | 3.5 | 4.4 | 5.7 | 7.3 | 9.3 | 12.1 | 15.1 | 19.0 | ||
| a | max. | 1.6 | 1.6 | 1.6 | 2.50 | 2.50 | 2.50 | 2.50 | 3.2 | 4 | 4 | 4 | 4 | 6.30 | 6.30 | 6.30 | 6.30 | |
| min. | 0.8 | 0.8 | 0.8 | 1.25 | 1.25 | 1.25 | 1.25 | 1.8 | 2 | 2 | 2 | 2 | 3.15 | 3.15 | 3.15 | 3.15 | ||
| b | = | 2 | 2.4 | 3 | 3 | 3.2 | 4 | 5 | 6.4 | 8 | 10 | 12.8 | 16 | 20 | 26 | 32 | 40 | |
| c | max. | 1.0 | 1.4 | 1.8 | 2.0 | 2.8 | 3.6 | 4.6 | 5.8 | 7.4 | 9.2 | 11.8 | 15.0 | 19.0 | 24.8 | 30.8 | 38.5 | |
| min. | 0.9 | 1.2 | 1.6 | 1.7 | 2.4 | 3.2 | 4.0 | 5.1 | 6.5 | 8.0 | 10.3 | 13.1 | 16.6 | 21.7 | 27.0 | 33.8 | ||
| Corresponding diameter |
Bolts | over | - | 2.5 | 3.5 | 4.5 | 5.5 | 7 | 9 | 11 | 14 | 20 | 27 | 39 | 56 | 80 | 120 | 170 |
| to | 2.5 | 3.5 | 4.5 | 5.5 | 7 | 9 | 11 | 14 | 20 | 27 | 39 | 58 | 80 | 120 | 170 | -- | ||
| Clevis pins | over | - | 2 | 3 | 4 | 5 | 6 | 8 | 9 | 12 | 17 | 23 | 29 | 44 | 69 | 110 | 180 | |
| to | 2 | 3 | 4 | 5 | 6 | 8 | 9 | 12 | 17 | 23 | 29 | 44 | 69 | 110 | 180 | -- | ||
|
1) Nominal size = diameter of the split pin hole; for the pin hole diameter the following classess
are recommended. 2) For railway applications and in cases where split pins in clevis pins are subjected to alterneting transverse forces, It is recommended to use the next larger split pins size to that specified in this table. |
||||||||||||||||||
Dimensions in millimetres
| Length l |
Nominal size | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| nom. | min. | max. | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 2 | 2.5 | 3.2 | 4 | 5 | 6.3 | 8 | 10 | 13 | 16 | 20 |
| 4 | 3.5 | 4.5 | ||||||||||||||||
| 5 | 4.5 | 5.5 | ||||||||||||||||
| 6 | 5.5 | 6.5 | ||||||||||||||||
| 8 | 7.5 | 8.5 | ||||||||||||||||
| 10 | 9.5 | 10.5 | ||||||||||||||||
| 12 | 11 | 13 | ||||||||||||||||
| 14 | 13 | 15 | ||||||||||||||||
| 16 | 15 | 17 | Range of | |||||||||||||||
| 18 | 17 | 19 | ||||||||||||||||
| 20 | 19 | 21 | ||||||||||||||||
| 22 | 21 | 23 | ||||||||||||||||
| 25 | 24 | 26 | ||||||||||||||||
| 28 | 27 | 29 | ||||||||||||||||
| 32 | 30.5 | 33.5 | commercial | |||||||||||||||
| 36 | 34.5 | 37.5 | ||||||||||||||||
| 40 | 38.5 | 41.5 | ||||||||||||||||
| 45 | 43.5 | 46.6 | lengths | |||||||||||||||
| 50 | 48.5 | 51.5 | ||||||||||||||||
| 56 | 54.5 | 57.5 | ||||||||||||||||
| 63 | 61.5 | 64.5 | ||||||||||||||||
| 71 | 69.5 | 72.5 | ||||||||||||||||
| 80 | 78.5 | 81.5 | ||||||||||||||||
| 90 | 88 | 92 | ||||||||||||||||
| 100 | 98 | 102 | ||||||||||||||||
| 112 | 110 | 114 | ||||||||||||||||
| 125 | 123 | 127 | ||||||||||||||||
| 140 | 138 | 142 | ||||||||||||||||
| 160 | 158 | 162 | ||||||||||||||||
| 180 | 178 | 182 | ||||||||||||||||
| 200 | 198 | 202 | ||||||||||||||||
| 224 | 222 | 226 | ||||||||||||||||
| 250 | 248 | 252 | ||||||||||||||||
| 280 | 278 | 282 | ||||||||||||||||
Requirements and reference International Standards
| Material |
Steel (St) Copper-zinc alloy (Cu Zn) Copper (Cu) Aluminimum alloy (Al) Austentic stainless steel (A) Other materials as agreed between customer and supplier. |
| Ductility |
Each leg of the split pin shall be capable of withstanding being bent back upon itself once, with no visible indication of fracture occuring at the point of bend |
| Surface Finish |
Plain i.e parts to be supplied in natural finish, treated with a
protective lubricant, or with other coating as agreed between customer and supplier. For electroplated coatings, see ISO 4042. For phospate coating see ISO 9717. |
| Workmanship |
Pins shall be free of burrs, irregularities and detrimental defects The eye shall be as circular as possible. The cross-section of the two staright legs together shall be circular. |
| Accpetability | For acceptance procedure, see ISO 3269 |
