CSN 21112 - Hexagon fit bolts with short threaded portion

Equivalent Standards

CSN 21112

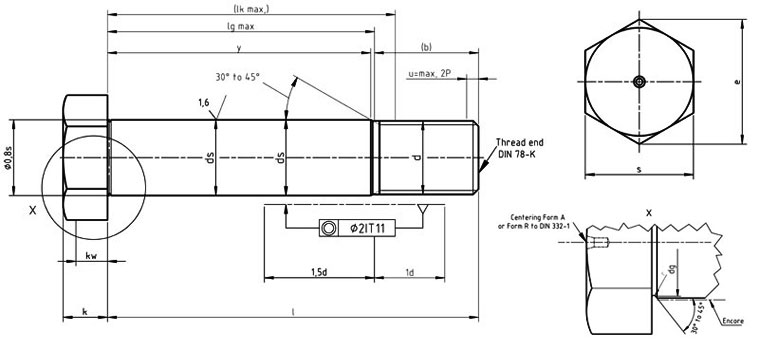

Dimensions for CSN 21112 - Hexagon fit bolts with short threaded portion

Thread d b ds dg e k kw r s
l <=50mm l <50 <=150mm l> 150 mm k6 min max min nom max min min min max max min
M8 - - 11.5 13.5 18.5 9 7.9 8.2 14.38 5.3 5.15 5.45 3.6 0.4 0.55 13 12.73
M10 - - 13.5 15.5 20.5 11 9.9 10.2 17.77
18.9
5.4 5.22 6.58 4.3 0.4 0.55 16
17
15.73
16.73
M12 - - 15.5 17.5 22.5 13 11.5 11.8 19.85
20.88
7.5 7.21 7.79 5.1 0.6 0.75 18
19
17.57
18.48
M14 - - 17 19 24 15 13.5 13.8 22.78
23.91
8.8 8.51 9.09 8 0.6 0.75 21
22
20.16
21.16
M16 - - 19 21 26 17 15.5 15.8 26.17 10 9.71 10.29 6.8 0.6 0.75 24 23.16
M18 M18x1.5 M18x2 21.5 23.5 28.5 19 17.5 17.8 29.56 11.5 11.15 11.85 7.8 0.8 0.75 27 26.16
M20 M20x1.5 M20x2 22.5 24.5 29.5 21 19.1 19.4 32.95 12.5 12.15 12.85 8.5 0.9 0.95 30 29.16
