CSN 21113 - Pass-shoulder screws with hexagon socket
Equivalent Standards

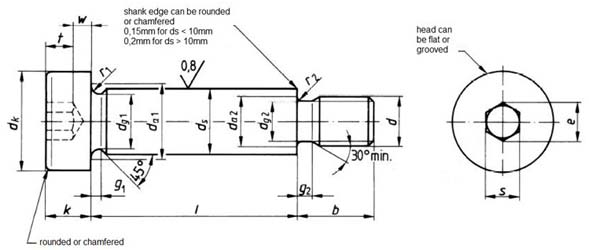

Dimensions for CSN 21113 - Pass-shoulder screws with hexagon socket
| d | ds | ≤ dk | ≤ k | s | b |
|---|---|---|---|---|---|
| M5 | 6 | 10.22 | 4.5 | 3 | 9.5 |
| M6 | 8 | 13.27 | 5.5 | 4 | 11 |
| M8 | 10 | 16.27 | 7 | 5 | 13 |
| M10 | 12 | 18.27 | 8.9 | 6 | 16 |
| M12 | 16 | 24.33 | 10.11 | 8 | 18 |
| M16 | 20 | 30.33 | 16 | 12 | 27 |
| M20 | 24 | 36.39 | 16 | 12 | 27 |
