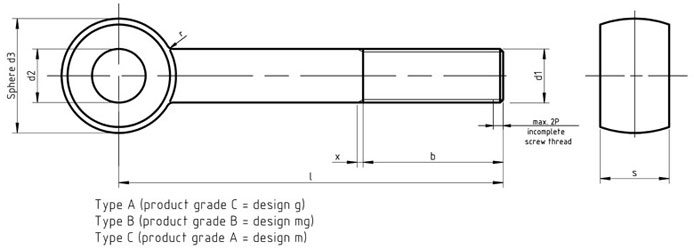

Dimensions for CSN 21167 Eyebolts
| Thread d1 |
b |
d2 |
d3 |
r |
s |
| +2P |
0 |
H9 |
max |
min Type A |
min Type B & C |
approx |
Type A max |
Type A min |
Type B & C max |
Type B & C min |
| M5 |
0.8 |
16 |
- |
- |
5 |
12 |
10.9 |
11.57 |
2.5 |
8 |
7.52 |
6 |
5.88 |
| M6 |
1 |
18 |
- |
- |
6 |
14 |
12.9 |
13.57 |
4 |
9 |
8.52 |
7 |
6.85 |
| M8 |
1.25 |
22 |
28 |
- |
8 |
18 |
16.9 |
17.57 |
4 |
11 |
10.3 |
9 |
8.85 |
| M10 |
1.5 |
26 |
32 |
- |
10 |
20 |
18.7 |
19.48 |
4 |
14 |
13.3 |
12 |
11.82 |
| M12 |
1.75 |
30 |
36 |
49 |
12 |
25 |
23.7 |
24.48 |
6 |
17 |
16.3 |
14 |
13.82 |
| M16 |
2 |
38 |
44 |
57 |
16 |
32 |
30.4 |
31.38 |
6 |
19 |
18.16 |
17 |
16.82 |
| M20 |
2.5 |
46 |
52 |
65 |
18 |
40 |
38.4 |
39.38 |
6 |
24 |
23.16 |
22 |
21.79 |
| M24 |
3 |
54 |
60 |
73 |
22 |
45 |
43.4 |
44.38 |
10 |
28 |
27.16 |
25 |
24.79 |
| M27 |
3 |
6 |
66 |
79 |
24 |
50 |
48.4 |
49.38 |
10 |
30 |
29.16 |
27 |
26.79 |
| M30 |
3.5 |
66 |
72 |
85 |
27 |
55 |
53.1 |
54.26 |
10 |
34 |
33 |
30 |
29.79 |
| M33 |
3.5 |
- |
78 |
91 |
30 |
60 |
58.1 |
59.26 |
16 |
38 |
37 |
34 |
33.75 |
| M36 |
4 |
- |
84 |
97 |
32 |
65 |
63.1 |
64.26 |
16 |
41 |
40 |
38 |
37.75 |
| M39 |
4 |
- |
90 |
103 |
35 |
70 |
68.1 |
69.26 |
16 |
46 |
45 |
41 |
40.75 |
