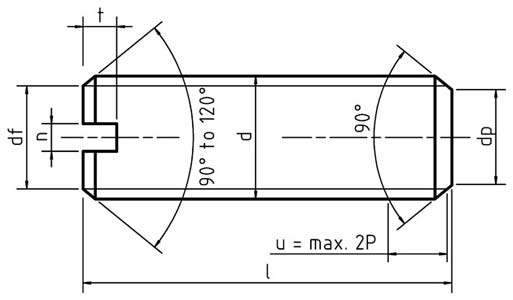

Dimensions for CSN 21181 - Slotted set screws

Thread size d	P	df	dp		n			t
			nominal max	min	nominal	max	min	nominal min	max
M1	0.25		0.5	0.25	0.2	0.26	0.4	0.4	0.52
M1.2	0.25		0.6	0.35	0.2	0.26	0.4	0.4	0.52
M1.4	0.3		0.7	0.45	0.2	0.26	0.4	0.48	0.63
M1.6	0.35		0.8	0.55	0.25	0.31	0.45	0.56	0.74
M2	0.4		1	0.75	0.25	0.31	0.45	0.64	0.84
M2.5	0.45		1.5	1.25	0.4	0.46	0.6	0.72	0.95
M3	0.5		2	1.75	0.4	0.46	0.6	0.8	1.05
M3.5	0.6		2.2	1.95	0.5	0.56	0.7	0.96	1.21
M4	0.7		2.5	2.25	0.6	0.66	0.8	1.12	1.45
M5	0.8		3.5	3.2	0.8	0.86	1	1.28	1.63
M6	1		4	3.7	1.	1.06	1.2	1.6	2
M8	1.25		5.5	5.2	1.2	1.26	1.51	2	2.5
M10	1.5		7	6.67	1.6	1.66	1.91	2.4	3
M12	1.75		8.5	8.14	2	2.06	2.31	2.8	3.6
