CSN 21182 - Slotted set screws with cup point
Home
Standards
CSN 21182
Equivalent Standards
DIN 438
ISO 7436
PN 82274
EU 27436

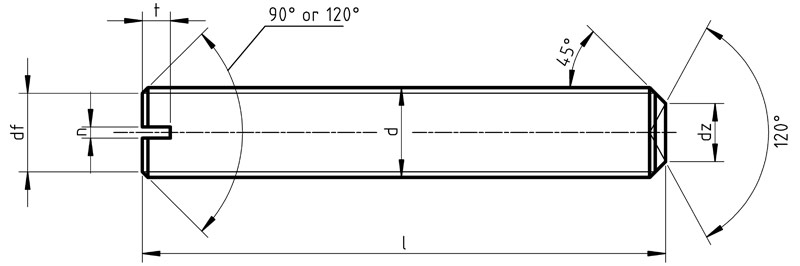

Dimensions for CSN 21182 - Slotted set screws with cup point
I
dz max.
n
t min.
M 3
1.4
0.4
0.8
M 4
2
0.6
1.12
M 5
2.5
0.8
1.28
M 6
3
1
1.6
M 8
5
1.2
2
M 10
6
1.6
2.4
M 12
8
2
2.5
