CSN 21207 - Hexagon bolts with small widths across flats full thread
Equivalent Standards

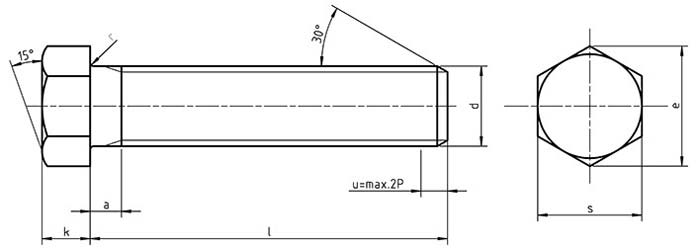

Dimensions for CSN 21207 - Hexagon bolts with small widths across flats full thread
| thread d | a max | e | k | r | s |
|---|---|---|---|---|---|
| M6 | 2.5 | 10.4 | 4 | 0.3 | 9 |
| M8 | 3 | 13.8 | 5 | 0.5 | 12 |
| M10 | 4 | 16.2 | 6 | 0.5 | 14 |
| M12 | 4 | 19.6 | 7 | 1 | 17 |
| M16 | 4.5 | 25.4 | 9 | 1 | 22 |
