CSN 21223 - Thread forming screws for metric ISO threads
Equivalent Standards

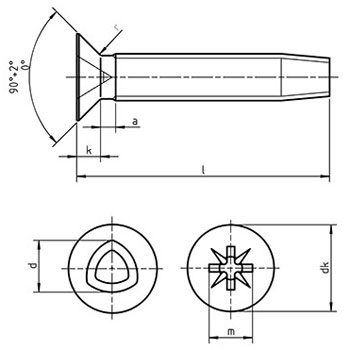

Dimensions for CSN 21223 - Thread forming screws for metric ISO threads
| d | d2 | k | m (PZ-Bit) |
|---|---|---|---|
| M3 | 5.6 | 1.65 | PZ 1 |
| M4 | 8 | 2.2 | PZ 2 |
| M5 | 9.2 | 2.5 | PZ 2 |
| M6 | 11 | 3 | PZ 3 |
| d | d2 | k | m (PZ-Bit) |
|---|---|---|---|
| M3 | 5.6 | 1.65 | PZ 1 |
| M4 | 8 | 2.2 | PZ 2 |
| M5 | 9.2 | 2.5 | PZ 2 |
| M6 | 11 | 3 | PZ 3 |
