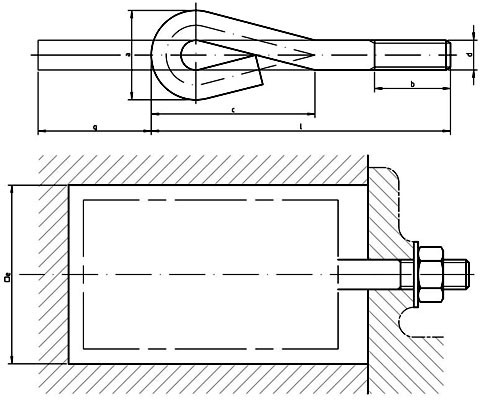

Dimensions for CSN 21391 - Anchor Bolts (Stone Bolt)

Thread size d	P	b	a ± 3	c ± 5	g approx.
M8	1.25	20	24	45	30
M10	1.5	25	30	55	38
M12	1.75	30	36	65	45
M16	2	40	48	85	60
M20	2.5	50	60	105	75
M24	3	60	75	125	90
M30	3.5	75	95	155	115
M36	4	90	115	190	135
M42	4.5	105	135	220	155
M48	5	120	155	250	180
M56	5.5	140	180	290	210
M64	6	160	200	335	235
M72x6	6	180	240	370	260
