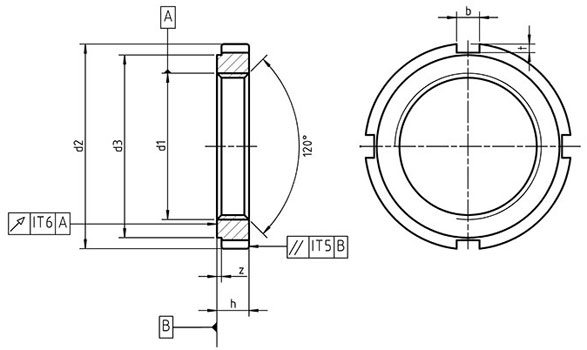

Dimensions for CSN 21449 - Slotted round nuts for hook spanners

d1 4H	d2 h11	d3	b	h h14	t	z	no. of slots	weight kg/100pcs
M6x0.75	16	12	4	5	1.5	0.5	4	0.575
M8x1	20	16	4	5	1.5	0.5	4	0.925
M10x1	25	20	5	6	2	0.5	4	1.74
M12x1.5	28	23	5	6	2	0.5	4	2.17
M14x1.5	30	25	5	7	2	0.5	4	2.86
M16x1.5	32	27	5	7	2	0.5	4	3.14
M18x1.5	34	28	6	8	2.5	0.5	4	3.8
M20x1.5	36	30	6	8	2.5	0.5	4	4.13
M22x1.5	40	34	6	9	2.5	0.5	4	5.9
M24x1.5	42	36	6	9	2.5	0.5	4	6.3
M26x1.5	45	38	7	10	3	0.5	4	7.82
M28x1.5	50	43	7	10	3	0.5	4	10.1
M30x1.5	50	43	7	10	3	0.5	4	9.35
M32x1.5	52	45	7	11	3	0.5	4	10.8
M35x1.5	55	48	7	11	3	0.5	4	11.7
M38x1.5	58	50	8	11	3.5	0.5	4	12.3
M40x1.5	62	54	8	12	3.5	0.5	4	15.9
M42x1.5	62	54	8	12	3.5	0.5	4	14.7
M45x1.5	68	60	8	12	3.5	0.5	6	18.1
M48x1.5	75	67	8	13	3.5	0.5	6	25.3
M50x1.5	75	67	8	13	3.5	0.5	6	23.8
M52x1.5	80	70	10	13	4	0.5	6	27.5
M55x1.5	80	70	10	13	4	0.5	6	25.1
M58x1.5	90	80	10	13	4	0.5	6	36
M60x1.5	90	80	10	13	4	0.5	6	34.1
M62x1.5	95	85	10	14	4	0.5	6	42.6
M65x1.5	95	85	10	14	4	0.5	6	39.4
M68x1.5	100	90	10	14	4	0.5	6	44.4
M70x1.5	100	90	10	14	4	0.5	6	41.8
M72x1.5	110	100	10	14	4	0.5	6	57.7
M75x1.5	110	100	1	14	4	0.5	6	54
M80x2	115	105	10	16	4	1	6	57.6
M85x2	120	110	10	16	4	1	6	68
M90x2	130	120	10	16	4	1	6	84.3
M95x2	135	120	12	16	5	1	6	86
M100x2	145	130	12	16	5	1	6	104
M105x2	155	140	12	16	5	1	6	123
M110x2	155	140	12	16	5	1	6	113
M115x2	165	150	12	18	5	1	6	150
M120x2	165	150	12	18	5	1	6	137
M125x2	180	165	12	18	5	1	8	178
M130x3	180	165	12	18	5	1	8	167
M140x3	195	180	12	18	5	1	8	200
M150x3	205	190	12	18	5	1	8	212
M160x3	220	205	12	20	5	1	8	278
M170x3	230	210	16	20	7	1	8	286
M180x3	245	225	16	20	7	1	8	330
M190x3	260	240	16	20	7	1	8	377
M200x3	270	250	16	22	7	1	8	436
