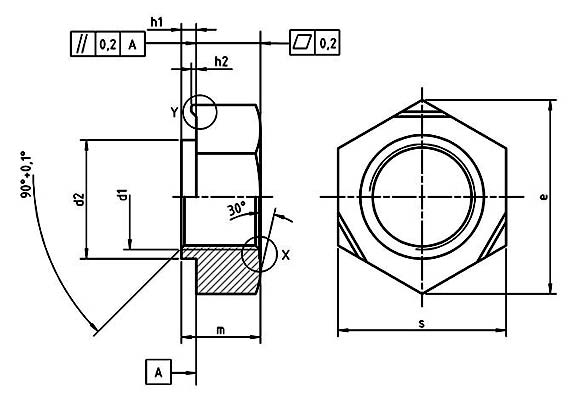

Dimensions for CSN 21455 - Hexagon weld nuts

Thread d1			b		d2	d3	d4	e	h1		h2		m	s	weight (7.85 kg/dm3) kg/1000pcs
				tolerance	d11	h13	max	min		tolerance		tolerance	h14	h13
M3	-	-	0.8	± 0.2	4.5	4.5	3.15	8.15	0.55	0-0.1	0.25	0	3	7.5	0.78
M4	-	-	0.8	± 0.2	6	6	4.2	9.83	0.65	0-0.1	0.35	-0.1	3.5	9	1.13
M5	-	-	0.8	± 0.2	7	7	5.25	10.95	0.7	0-0.1	0.4		4	10	1.73
M6	-	-	0.9	± 0.22	8	8	6.3	12.02	0.75	0-0.15	0.4		5	11	2.5
M8	M8 x 1	-	1	± 0.25	10.5	10.5	8.4	15.38	0.9	0-0.15	0.5	0	6.5	14	5.27
M10	M10 x 1.25	M10 x 1	1.25	± 0.3	12.5	12.5	10.5	18.74	1.15	0-0.2	0.65	-0.15	8	17	9.58
-	-	7/16-20 UNF-2B	1.25	± 0.3	12.5	13.5	11.7	18.74	1.15	0-0.2	0.65	0	10	17	12
-	-	7/16-20 UNF-2B	1.25	± 0.3	13.5	13.5	11.7	20.91	1.4	0-0.2	0.8	-0.2	10	19	14
M12	M12 x 1.25	M12 x 1.5	1.25	± 0.3	14.8	14.8	12.6	20.91	1.4	0-0.2	0.8		10	19	13.7
M14	M14 x 1.5	-	1.5	± 0.4	16.8	16.8	14.7	24.27	1.8	0-0.2	1		11	22	21.3
M16	M16 x 1.5	-	1.5	± 0.4	18.8	18.8	16.8	26.51	1.8	0-0.2	1		13	24	28.5
