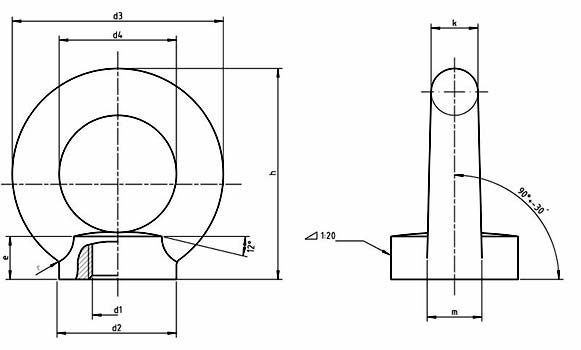

Dimensions for CSN 21669 - Lifting Eye Nuts

Thread Size d1	d2	d3	d4	e	h	k	m	r	Weight kg/1pc
M8	20	36	20	8.5	36	8	10	4	0.05
M10	25	45	25	10	45	10	12	4	0.09
M12	30	54	30	11	53	12	14	6	0.16
M16	35	63	35	13	62	14	16	6	0.24
M20	40	72	40	16	71	16	19	8	0.36
M24	50	90	50	20	90	20	24	12	0.72
M30	65	108	60	25	109	24	28	15	1.32
M36	75	126	70	30	128	28	32	18	2.08
M42	85	144	80	35	147	32	38	20	3.11
M48	100	166	90	40	168	38	46	22	5.02
M56	110	184	100	45	187	42	50	25	6.69
M64	120	206	110	50	208	48	58	25	9.3
M72x6	150	260	140	60	260	60	72	35	18.5
M80x6	170	296	160	70	298	68	80	35	27.3
M100x6	190	330	180	80	330	75	88	40	36.4
