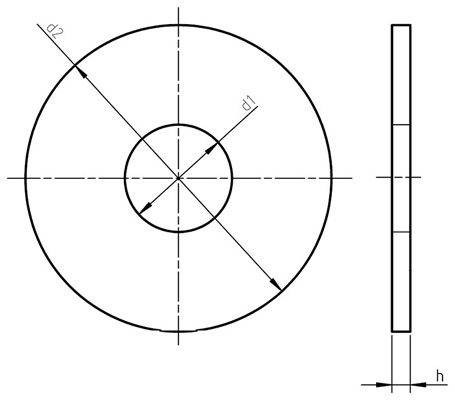

Dimensions for CSN 21726 - Plain washer, outer diameter about 3 d

Nominal size	For thread	d1		d2		h			Weight kg/1000pcs
		min. Nominal size	max.	max. Nominal size	min.	Nominal size	max.	min.
2.7	M2.5	2.7	2.84	8	7.64	0.8	0.9	0.7	0.28
3.2	M3	3.2	3.38	9	8.64	0.8	0.9	0.7	0.349
3.7	M3.5	3.7	3.88	11	10.57	0.8	0.9	0.7	0.529
4.3	M4	4.3	4.48	12	11.57	1	1.1	0.9	0.774
5.3	M5	5.3	5.48	15	14.57	1.2	1.4	1	1.46
6.4	M6	6.4	6.62	18	17.57	1.6	1.8	1.4	2.79
7.4	M7	7.4	7.62	22	21.48	2	2.2	1.8	5.29
8.4	M8	8.4	8.62	24	23.48	2	2.2	1.8	6.23
10.5	M10	10.5	10.77	30	29.48	2.5	2.7	2.3	12.2
13	M12	13	13.27	37	36.38	3	3.3	2.7	22.2
15	M14	15	15.27	44	43.38	3	3.3	2.7	31.6
17	M16	17	17.27	50	49.38	3	3.3	2.7	40.9
20	M18	20	20.52	56	54.1	4	4.6	3.4	67.4
22	M20	22	22.52	60	58.1	4	4.6	3.4	76.8
26	M24	26	26.84	72	70.1	5	6	4	139
33	M30	33	34	92	89.8	6	7	5	273
39	M36	39	40	110	107.8	8	9.2	6.8	522
