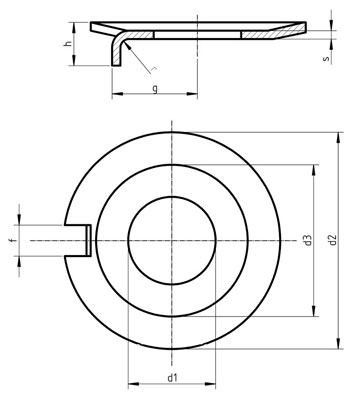

Dimensions for CSN 21753 - External tab
| Size |
d1 |
d2 |
s |
f |
g |
| M3 |
3.2 |
12 |
0.4 |
2.5 |
4.5 |
| M4 |
4.3 |
14 |
0.40 |
2.5 |
5.5 |
| M5 |
5.3 |
17 |
0.75 |
3.5 |
7.0 |
| M6 |
6.4 |
19 |
0.75 |
3.5 |
7.5 |
| M8 |
8.4 |
22 |
1.00 |
3.5 |
8.5 |
| M10 |
10.5 |
26 |
1.00 |
4.5 |
10.0 |
| M12 |
13.0 |
30 |
1.20 |
4.5 |
12.0 |
| M14 |
15.0 |
33 |
1.20 |
4.5 |
13.0 |
| M16 |
17.0 |
36 |
1.20 |
5.5 |
15.0 |
| M18 |
19.0 |
40 |
1.20 |
6.5 |
18.0 |
| M20 |
21.0 |
42 |
1.60 |
6.5 |
18.0 |
| M22 |
23.0 |
50 |
1.60 |
7.5 |
20.0 |
| M24 |
25.0 |
50 |
1.60 |
7.5 |
21.0 |
| M27 |
28.0 |
58 |
1.60 |
8.5 |
23.0 |
| M30 |
31.0 |
63 |
1.60 |
8.5 |
25.0 |
| M33 |
34.0 |
68 |
1.60 |
9.5 |
28.0 |
| M36 |
37.0 |
75 |
2.00 |
11.0 |
31.0 |
| M39 |
40.0 |
82 |
2.00 |
11.0 |
33.0 |
