CSN 21824 - Cross recessed countersunk (flat) head

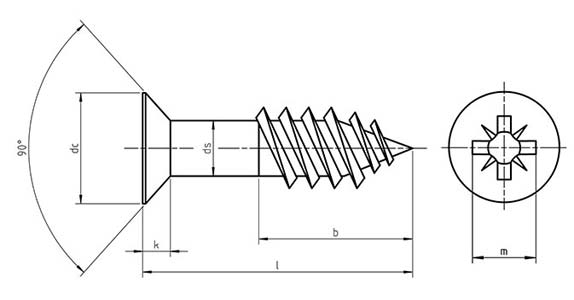

Dimensions for CSN 21824 - Cross recessed countersunk (flat) head
| d | b | k | d1 |
|---|---|---|---|
| 3 | >= 0.6 x l | 1.65 | 5.6 |
| 3.5 | >= 0.6 x l | 1.93 | 6.5 |
| 4 | >= 0.6 x l | 2.2 | 7.5 |
| 4.5 | >= 0.6 x l | 2.35 | 8.3 |
| 5 | >= 0.6 x l | 2.5 | 9.2 |
| 6 | >= 0.6 x l | 3 | 11 |
