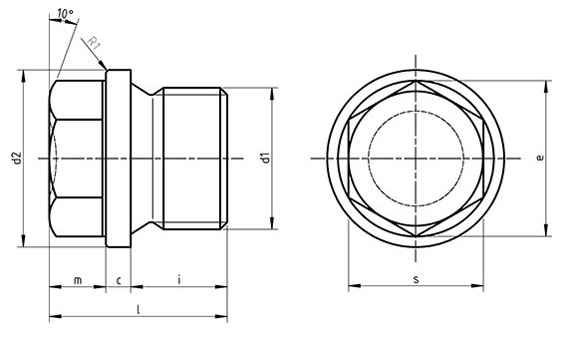

Dimensions for CSN 21915 - Screw plugs with collar and outer hexagon, cylindrical thread

d1			c	d2	e	i	l	s	t	w	Weight (7.85 kg/dm3) kg/1000 pieces
Metric Fine Thread		Pipe Thread	+0.5	h14	min.	a0.2	approx.	D12	min	min
M10x1	-	G1/8 A	3	14	5.7	8	11	5	5	3	6.34
M12x1.5	-	-	3	17	6.9	12	15	6	7	3	11.3
-	-	G1/4 A	3	18	6.9	12	15	6	7	3	14.6
M14x1.5	-	-	3	19	6.9	12	15	6	7	3	16
M16x1.5	-	-	3	21	9.2	12	15	8	7.5	3	19
-	-	G3/8 A	3	22	9.2	12	15	8	7.5	3	21.4
M18x1.5	-	-	4	23	9.2	12	16	8	7.5	3	28.3
M20x1.5	-	-	4	25	11.4	14	18	10	7.5	4	37.5
-	-	G1/2 A	4	26	11.4	1	18	10	7.5	4	40.8
M22x1.5	-	-	4	27	11.4	14	18	10	7.5	4	47.5
M24x1.5	-	-	4	29	13.7	14	18	12	7.5	4	53.5
M26x1.5	-	-	4	31	13.7	16	20	12	9	4	68.7
-	M27x2	G 3/4 A	4	32	13.7	16	20	12	9	4	73.5
M30x1.5	M30x2	-	4	36	19.4	16	20	17	9	4	84
-	M33x2	G1 A	5	39	19.4	16	21	17	9	4	111
M36x1.5	M36x2	-	5	42	21.7	16	21	19	10.5	4	134
M38x1.5	-	G 11/8 A	5	44	21.7	16	21	19	10.5	4	149
-	M39x2	-	5	46	21.7	16	21	19	10.5	4	163
M42x1.5	M42x2	G1 1/4A	5	49	25.2	16	21	22	10.5	4	187
M45x1.5	M45x2	-	5	52	25.2	16	21	22	10.5	4	215
M48x2	M48x2	G1 1/2A	5	55	27.4	16	21	24	10.5	4	246
M52x1.5	M52x2	-	5	60	27.4	16	21	24	10.5	4	302
-	-	G1 3/4 A	5	62	36.6	20	25	32	14	4	320
-	M56x2	-	5	64	36.6	20	25	32	14	4	386
-	M60x2	G 2A	5	68	36.6	20	25	32	14	4	445
-	M64x2	-	5	72	36.6	20	25	32	14	4	530
