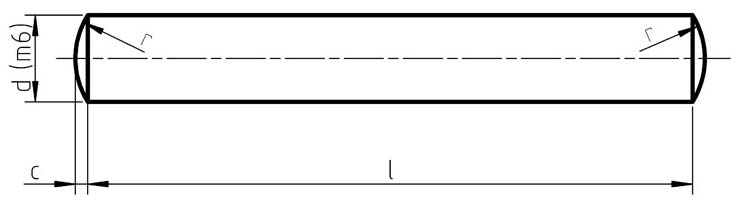

Dimensions for CSN 22150 - Dowel Pins
| d m6 | r | c | Tol. m6 (l=2-10mm) | Tol. m6 (l=12-32mm) | Tol. h6 (l=2-10mm) | Tol. h6 (l=12-32mm) |
|---|---|---|---|---|---|---|
| 1 | 1 | 0.15 | 0.3 | 0.5 | 0.5 | 1 |
| 1.2 | 1.2 | 0.18 | 0.3 | 0.5 | 0.5 | 1 |
| 1.5 | 1.6 | 0.23 | 0.3 | 0.5 | 0.5 | 1 |
| 2 | 2 | 0.3 | 0.3 | 0.5 | 0.5 | 1 |
| 2.5 | 2.5 | 0.4 | 0.3 | 0.5 | 0.5 | 1 |
| 3 | 3 | 0.45 | 0.3 | 0.5 | 0.5 | 1 |
| 4 | 4 | 0.6 | 0.3 | 0.5 | 0.5 | 1 |
| 5 | 5 | 0.75 | 0.3 | 0.5 | 0.5 | 1 |
| 6 | 6 | 0.9 | 0.3 | 0.5 | 0.5 | 1 |
| 8 | 8 | 1.2 | 0.3 | 0.5 | 0.5 | 1 |
| 10 | 10 | 1.5 | 0.3 | 0.5 | 0.5 | 1 |
| 12 | 12 | 1.8 | 0.3 | 0.5 | 0.5 | 1 |
| 16 | 16 | 2.5 | 0.3 | 0.5 | 0.5 | 1 |
| 20 | 20 | 3 | 0.3 | 0.5 | 0.5 | 1 |
