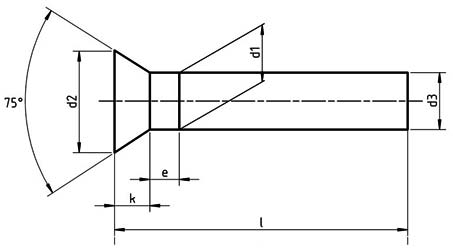

Dimensions for CSN 22311 - Countersunk Head Rivets

d1		d2		d3	e	k
Nominal	Tolerance	Nominal	Tolerance	min	max	approx
1	± 0.05	1.8	h14	0.93	0.5	0.5
1.2	± 0.05	2.1	h14	1.13	0.6	0.6
1.4	± 0.05	2.4	h14	1.33	0.7	0.7
1.6	± 0.05	2.8	h14	1.52	0.8	0.8
2	± 0.1	3.5	h14	1.87	1	1
2.5	± 0.1	4.4	h14	2.37	1.25	1.2
3	± 0.1	5.2	h14	2.87	1.5	1.4
3.5	± 0.1	6.3	h15	3.37	1.75	1.8
4	± 0.1	7	h15	3.87	2	2
5	± 0.15	8.8	h15	4.82	2.5	2.5
6	± 0.15	10.5	h15	5.82	3	3
7	± 0.15	12.2	h15	6.82	3.5	3.5
