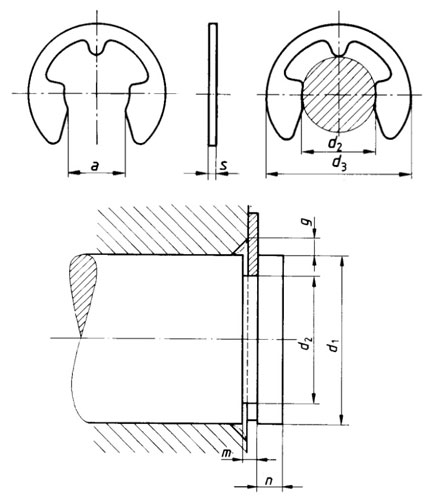

Dimensions for CSN 22929 - Retaining washers for shafts

d2	d1		s		a		weight kg/1000pcs	d2		m		n	d3	FN		Fs	g	Fsg	n abi
nominal size	min	max		tolerance		tolerance			tolerance(h11)		tolerance	min	max	kN	for d1	kN			min.-1
0.8	1	1.4	0.2	±0.02	0.58	±0.04	0.003	0.8	0-0.04	0.24	+0.040	0.4	2.25	0.03	1.2	0.08	0.3	0.04	50000
1.2	1.4	2	0.3	±0.02	1.01	±0.04	0.009	1.2	0-0.06	0.34	+0.040	0.6	3.25	0.04	1.5	0.12	0.4	0.06	47000
1.5	2	2.5	0.4	±0.02	1.28	±0.04	0.021	1.5	0-0.06	0.44	+0.040	0.8	4.25	0.07	2	0.22	0.6	0.11	43000
1.9	2.5	3	0.5	±0.02	1.61	±0.04	0.04	1.9	0-0.06	0.54	+0.050	1	4.8	0.1	2.5	0.35	0.7	0.17	40000
2.3	3	4	0.6	±0.02	1.94	±0.04	0.069	2.3	0-0.06	0.64	+0.050	1	6.3	0.15	3	0.5	0.9	0.24	38000
3.2	4	5	0.6	±0.02	2.7	±0.04	0.088	3.2	0-0.075	0.64	+0.050	1	7.3	0.22	4	0.65	0.9	0.32	35000
4	5	7	0.7	±0.02	3.34	±0.048	0.158	4	0-0.075	0.74	+0.050	1.2	9.3	0.25	5	0.95	1	0.47	32000
5	6	8	0.7	±0.02	4.11	±0.048	0.236	5	0-0.075	0.74	+0.050	1.2	11.3	0.9	7	1.15	1	0.6	28000
6	7	9	0.7	±0.02	5.26	±0.048	0.255	6	0-0.075	0.74	+0.050	1.2	12.3	1.1	8	1.35	1.1	0.7	25000
7	8	11	0.9	±0.02	5.84	±0.048	0.474	7	0-0.09	0.94	+0.050	1.5	14.3	1.25	9	1.8	1.3	1	22000
8	9	12	1	±0.03	6.52	±0.058	0.66	8	0-0.09	1.05	+0.080	1.8	16.3	1.42	10	2.5	1.5	1.25	20000
9	10	14	1.1	±0.03	7.63	±0.058	1.09	9	0-0.09	1.15	+0.080	2	18.8	1.6	11	3	1.6	1.5	17000
10	11	15	1.2	±0.03	8.32	±0.058	1.25	10	0-0.09	1.25	+0.080	2	20.4	1.7	12	3.5	1.8	1.75	15000
12	13	18	1.3	±0.03	10.45	±0.07	1.63	12	0-0.11	1.35	+0.080	2.5	23.4	3.1	15	4.7	1.9	2.3	13000
15	16	24	1.5	±0.03	12.61	±0.07	3.37	15	0-0.11	1.55	+0.080	3	29.4	7	20	7.8	2.2	3.3	11000
19	20	31	1.75	±0.03	15.92	±0.07	6.42	19	0-0.11	1.8	+0.080	3.5	37.6	10	25	11	2.5	3.6	7600
24	25	38	2	±0.03	21.88	±0.084	8.55	24	0-0.13	2.05	+0.080	4	44.6	13	30	15	3	4	5500
30	32	42	2.5	±0.03	25.8	±0.084	13.5	30	0-0.13	2.55	+0.080	4.5	52.6	16.5	36	23	3.5	5.3	4200
