CSN 22930 - Retaining rings for shafts

Equivalent Standards

CSN 22930

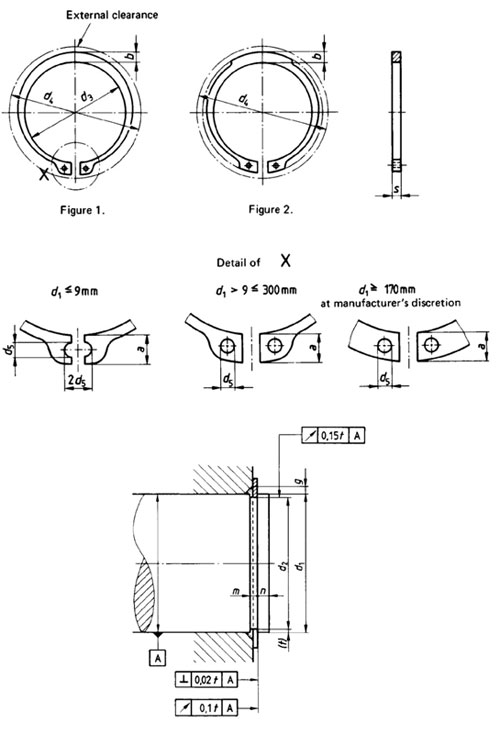

Dimensions for CSN 22930 - Retaining rings for shafts

Shaft diameter Clip Groove Supplementary
data
d1 s d3 a b d5 weight kg/1000pcs d2 m t n d4 FN FR g FRg nabl Nominal size of pliers according to DIN 5254
Nominal size per. dev. per. dev. max. approx. min. per. dev. H13 min. kN kN kN min-1
3 0.4 0 - 0.05 2.7 +0.04 - 0.15 1.9 0.8 1 0.017 2.8 0 - 0.04
(h10)		 0.5 0.1 0.3 7 0.15 0.47 0.5 0.27 360000 3
4 0.4   3.7   2.2 0.9 1 0.022 3.8 0
-0.048
(h10)		 0.5 0.1 0.3 8.6 0.2 0.5 0.5 0.3 211000
5 0.6   4.7   2.5 1.1 1 0.066 4.8   0.7 0.1 0.3 10.2 0.26 1 0.5 0.8 154000
6 0.7   5.6   2.7 1.3 1 0.084 5.7   0.8 0.15 0.5 11.7 0.46 1.45 0.5 0.9 114000
7 0.8   6.5 +0.06
-0.18		 3.1 1.4 1.2 0.121 6.7 0
-0.06
(h10)		 0.9 0.15 0.5 13.5 0.54 2.6 0.5 1.4 121000
8 0.8   7.4   3.2 1.5 1.2 0.158 7.6   0.9 0.2 0.6 14.7 0.81 3 0.5 2 96000
9 1 0-0.06 8.4   3.3 1.7 1.2 0.3 8.6   1.1 0.2 0.6 16 0.92 3.5 0.5 2.4 85000
10 1   9.3

+0.10

-0.36

 3.3 1.8 1.2 0.34 9.6   1.1 0.2 0.6 17 1.01 4 1 2.4 84000 10
11 1   10.2   3.3 1.8 1.5 0.41 10.5 0
-0.11
(h11)		 1.1 0.25 0.8 18 1.4 4.5 1 2.4 70000
12 1   11   3.3 1.8 1.5 0.5 11.5   1.1 0.25 0.9 19 1.53 5 1 2.4 75000
13 1   11.9   3.4 2 1.7 0.53 12.4   .1.1 0.3 0.9 20.2 2 5.8 1 3.4 66000
14 1   12.9   3.5 2.1 1.7 0.64 13.4   1.1 0.3 1.1 21.4 2.15 6.35 1 2.4 58000
15 1   13.8   3.6 2.2 1.7 0.67 14.3   1.1 0.35 1.2 22.6 2.66 6.9 1 2.4 50000
16 1   14.7   3.7 2.2 1.7 0.7 15.2   1.1 0.4 1.2 23.8 3.26 7.4 1 2.4 45000
17 1   15.7   3.8 2.3 1.7 0.82 16.2   1.1 0.4 1.5 25 3.46 8 1 2.4 41000
18 1.2   16.5   3.9 2.4 1.7 1.11 17   1.3 0.5 1.5 26.2 4.58 17 1.5 3.75 39000
19 1.2   17.5   3.9 2.5 2 1.22 18   1.3 0.5 1.5 27.2 4.84 17 1.5 3.8 35000 19
20 1.2   18.5

+0.13

-0.42

 4 2.6 2 1.3 19 0
-0.13
(h11)		 1.3 0.5 1.5 28.4 5.06 17.1 1.5 3.85 32000
21 1.2   19.5   4.1 2.7 2 1.42 20   1.3 0.5 1.5 29.6 5.36 16.8 1.5 3.75 29000
22 1.2   20.5   4.2 2.8 2 1.5 21   1.3 0.5 1.7 30.8 5.65 16.9 1.5 3.8 27000
24 1.2   22.2

+0.21

-0.42

 4.4 3 2 1.77 22.9 0
-0.21
(h12)		 1.3 0.55 1.7 33.2 6.75 16.1 1.5 3.65 27000
25 1.2   23.2   4.4 3 2 1.9 23.9   1.3 0.55 1.7 34.2 7.05 16.2 1.5 3.7 25000
26 1.2   24.2   4.5 3.1 2 1.96 24.9   1.6 0.55 2.1 35.5 7.34 16.1 1.5 3.7 24000
28 1.5   25.9   4.7 3.2 2 2.92 26.6   1.6 0.7 2.1 37.9 10 32.1 1.5 7.5 21200
29 1.5   26.9   7.8 3.4 2 3.2 27.6   1.6 0.7 2.1 39.1 10.37 31.8 1.5 7.45 20000
30 1.5   27.9   5 3.5 2 3.31 28.6   1.6 0.7 2.6 40.5 10.73 32.1 1.5 7.65 18900
32 1.5   29.6   5.2 3.6 2.5 3.54 30.3 0
-0.25
(h12)		 1.6 0.85 2.6 43 13.85 31.2 2 5.55 16900
34 1.5   31.5

+0.25

-0.5

 5.4 3.8 2.5 3.8 32.3   1.6 0.85 3 45.4 14.72 31.3 2 5.6 16100
35 1.5   32.2   5.6 3.9 2.5 4 33   1.6 1 3 46.8 17.8 30.8 2 5.55 15500
36 1.75   33.2   5.6 4 2.5 5 34   1.85 1 3 47.8 18.33 49.4 2 9 14500
38 1.75   35.2   5.8 4.2 2.5 5.62 36   1.85 1 3.8 50.2 19.3 49.5 2 9.1 13600
40 1.75   36.5

+0.39

-0.9

 6 4.4 2.5 6.03 37.5   1.85 1.25 3.8 52.6 25.3 51 2 9.5 14300 40
42 1.75   38.5   6.5 4.5 2.5 6.5 39.5   1.85 1.25 3.8 55.7 26.7 50 2 9.45 13000
45 1.75   41.5   6.7 4.7 2.5 7.5 42.5   1.85 1.25 3.8 59.1 28.6 49 2 9.35 11400
48 2   44.5   6.9 5 2.5 7.9 45.5   1.85 1.25 4.5 62.5 30.7

49.4



 2 9.55 10300
50 2 0-0.07 45.8   6.9 5.1 2.5 10.2 47   2.15 1.5 4.5 64.5 38 73.3 2 14.4 10500
52 2   47.8   7 5.2 2.5 11.1 49   2.15 1.5 4.5 66.7 39.7 73.1 2.5 11.5 9850
55 2   50.8

+0.46

-1.1

 7.2 5.4 2.5 11.4 52 0
-0.30
(h12)		 2.15 1.5 4.5 70.2 42 71.4 2.5 11.4 8960
56 2   51.8   7.3 5.5 2.5 11.8 53   2.15 1.5 4.5 71.6 42.8 70.8 2.5 11.35 8670
58 2   53.8   7.3 5.6 2.5 12.6 55   2.15 1.5 4.5 73.6 44.3 71.1 2.5 11.5 8200
60 2   55.8   7.4 5.8 2.5 12.9 57   2.15 1.5 4.5 75.6 46 69.2 2.5 11.3 7620
62 2   57.8   7.5 6 2.5 1.3 59   2.15 1.5 4.5 77.8 47.5 69.3 2.5 11.45 7240
63 2   58.8   7.6 6.2 2.5 15.9 60   2.15 1.5 4.5 79 48.3 70.2 2.5 11.6 7050
65 2.5   60.8   7.8 6.3 3 18.2 62   2.65 1.5 4.5 81.4 49.8 135.6 2.5 22.7 6640
68 2.5   63.5   8 6.2 3 21.8 65   2.65 1.5 4.5 84.8 52.2 135.9 2.5 23.1 6910
70 2.5   65.5   8.1 6.6 3 22 67   2.65 1.5 4.5 87 53.8 134.2 2.5 23 6530
72 2.5   67.5   8.2 6.8 3 22.5 69   2.65 1.5 4.5 89.2 55.3 131.8 2.5 22.8. 6190
75 2.5   70.5   8.4 7 3 24.6 72   2.65 1.5 4.5 92.7 57.6 130 3 22.8 5740
78 2.5   73.5   8.6 7.3 3 26.2 75   2.65 1.5 5.3 96.1 60 131.3 3 19.75 5450
80 2.5   74.5   8.6 7.4 3 27.3 76.5   2.65 1.75 5.3 98.1 71.6 128.4 3 19.5 6100
82 2.5   76.5   8.7 7.6 3 31.2 78.5   2.65 1.75 5.3 100.3 73.5 128 3 19.6 5860
85 3 0-0.08 79.5   8.7 7.8 3.5 36.4 81.5 0
-0.35
(h12)		 3.15 1.75 5.3 103.3 76.2 215.4 3 33.4 5710 85
88 3   82.5

+0.54

-1.3

 8.8 8 3.5 41.2 84.5   3.15 1.75 5.3 106.5 79 221.8 3 34.85 5200
90 3   84.5   8.8 8.2 3.5 44.5 86.5   3.15 1.75 5.3 108.5 80.8 217.2 3 34.4 4980
95 3   89.5   9.4 8.6 3.5 49 91.5   3.15 1.75 5.3 114.8 85.5 212.2 3 29.25 4550
100 3 0-0.1 94.5   9.6 9 3.5 53.7 96.5   3.15 1.75 6 120.2 90 206.4 3.5 29 4180
105 4   98   9.9 9.3 3.5 80 101 0
-0.54
(h13)		 4.15 2 6 125.8 107.6 471.8 3.5 67.7 4740
110 4   103   10.1 9.6 3.5 82 106   4.15 2 6 131.2 113 457 3.5 66.9 4340
115 4   108   10.6 9.8 3.5 84 111   4.15 2 6 137.3 118.2 438.6 3.5 65.5 3970
120 4   113   11 10.2 3.5 86 116   4.15 2 6 143.1 123.5 426.6 3.5 64.5 3685
125 4   118

11.4

 10.4 4 90 121 0
-0.63
(h13)		 4.15 2 6 149 128.7 411.5 4 56.5 3420 125
130 4   123

+0.63

-1.5

 11.6 10.7 4 100 126   4.15 2 6 154.4 134 2395.5 4 55.2 3180
135 4   128   11.8 11 4 104 131   4.15 2 6 159.8 139.2 389.5 4 55.4 2950
140 4   133   12 11.2 4 110 136   4.15 2 6 165.2 144.5 376.5 4 54.4 2760
145 4   138   12.2 11.5 4 115 141   4.15 2 7.5 170.6 149.6 367 4 53.8 2600
150 4   142   12.5 11.8 4 120 145   4.15 2.5 7.5 177.3 193 357.5 4 53.4 2480
155 4   146   12.9 12 4 135 150   4.15 2.5 7.5 182.3 199.6 352.9 4 52.6 2710
160 4   151   12.9 12.2 4 150 155   4.15 2.5 7.5 188 206.1 349.2 4 52.2 2540
165 4   155.5   13.5 12.5 4 160 160   4.15 2.5 7.5 193.4 212.5 345.3 4 41.4 2520
170 4   160.5   13.5 12.9 4 170 165   4.15 2.5 7.5 198.4 219.1 349.2 4 41.9 2440
175 4   165.5   14.2 12.9 4 180 170   4.15 2.5 7.5 203.4 225.5 340.1 5 40.7 2300
180 4   170.5   14.2 13.5 4 190 175   4.15 2.5 7.5 210 232.2 345.3 5 41.4 2790
185 4   175.5   14.2 14 4 200 180   4.15 2.5 7.5 215 238.6 336.7 5 40.4 2070
190 4   180.5

+0.72

-1.7

 14.2 14 4 210 185 0
-0.72
(h13)		 4.15 2.5 7.5 220 245.1 333.8 5 40 1970
195 4   185.5   14.2 14 4 220 190   4.15 2.5 7.5 225 251.8 325.4 5 39 1835
200 4   190.5   14.2 14 4 230 195   4.15 2.5 9 230 258.3 319.2 5 38.3 1770
210 5 0-0.12 198   14.2 14 4 248 204   5.15 3 9 240 325.1 598.2 6 59.9 1835
220 5   208   14.2 14 4 265 214   5.15 3 9 250 340.8 572.4 6 57.3 1620
230 5   218   14.2 14 4 290 224   5.15 3 9 260 356.6 548.9 6 55 1445
240 5   228   14.2 14 4 310 234   5.15 3 9 270 372.6 530.3 6 53 1305
250 5   238   14.2 14 4 335 244   5.15 3 12 280 388.3 504.3 6 50.5 1180
260 5   245   16.2 16 5 355 252 0
-0.81
(h13)		 5.15 4 12 294 535.8 540.6 6 54.6 1320
270 5   255

+0.81

-2

 16.2 16 5 375 262   5.15 4 12 304 556.5 523.3 6 52.5 1215
280 5   265   16.2 16 5 398 272   5.15 4 12 314 576.6 508.2 6 50.9 1100
290 5   275   16.2 16 5 418 282   5.15 4 12 324 599.1 490.8 6 49.2 1005
300 5   285   16.2 16 5 440 292   5.15 4 12 334 619.1 475 6 47.5 930
