CSN 22931 - Retaining rings for bores

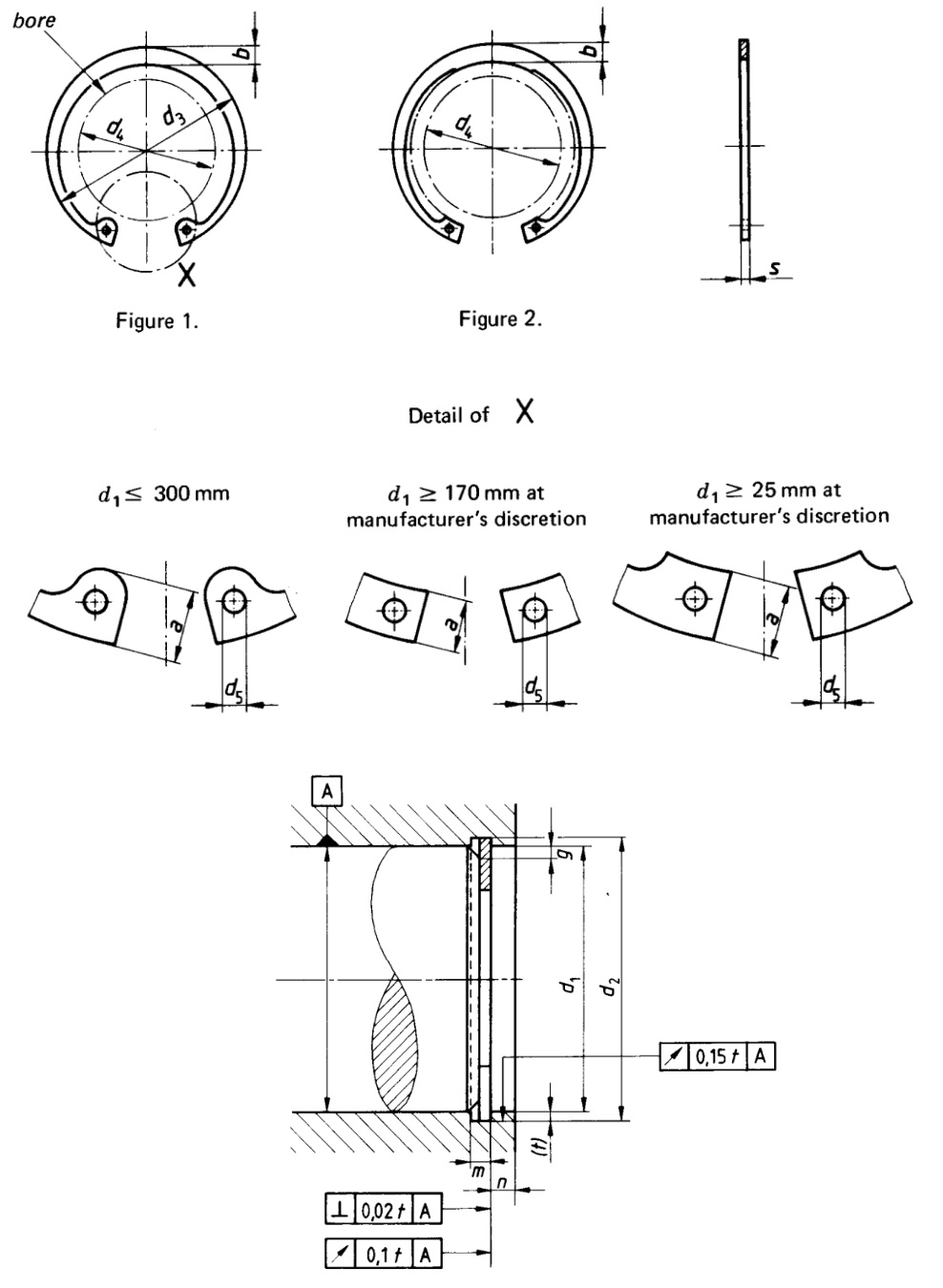

Dimensions for CSN 22931 - Retaining rings for bores
| Shaft diameter | Clip | Groove | Supplementary data |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | s | d3 | a | b | d5 | weight kg/1000pcs | d2 | m | t | n | d4 | FN | FR | g | FRg | Nominal size of pliers according to DIN 5254 | |||
| Nominal size | per. dev. | per. dev. | max. | approx. | min. | per. dev. | H13 | min. | kN | kN | kN | ||||||||
| 8 | 0.8 | 0-0.05 | 8.7 | +0.36-0.10 | 2.4 | 1.1 | 1 | 0.14 | 8.4 | +0.090(H11) | 0.9 | 0.2 | 0.6 | 3 | 0.86 | 2 | 0.5 | 1.5 | 8 |
| 9 | 0.8 | 9.8 | 2.5 | 1.3 | 1 | 0.15 | 9.4 | +0.11 0 (H11) |
0.9 | 0.2 | 0.6 | 3.7 | 0.96 | 2 | 0.5 | 1.5 | |||
| 10 | 1 | 0 -0.06 |
10.8 | 3.2 | 1.4 | 1.2 | 0.18 | 10.4 | 1.1 | 0.2 | 0.6 | 3.3 | 1.08 | 4 | 0.5 | 2.2 | |||
| 11 | 1 | 11.8 | 3.3 | 1.5 | 1.2 | 0.31 | 11.4 | 1.1 | 0.2 | 0.6 | 4..1 | 1.17 | 4 | 0.5 | 2.3 | ||||
| 12 | 1 | 13 | 3.4 | 1.7 | 1.5 | 0.37 | 12.5 | 1.1 | 0.25 | 0.8 | 4.9 | 16 | 4 | 0.5 | 2.3 | ||||
| 13 | 1 | 14.1 | 3.6 | 1.8 | 1.5 | 0.42 | 13.6 | 1.1 | 0.3 | 0.9 | 5.4 | 2.1 | 4.2 | 0.5 | 2.3 | ||||
| 14 | 1 | 15.1 | 3.7 | 1.9 | 1.7 | 0.52 | 14.6 | 1.1 | 0.3 | 0.9 | 6.2 | 2.25 | 4.5 | 0.5 | 2.3 | ||||
| 15 | 1 | 16.2 | 3.7 | 2 | 1.7 | 0.56 | 15.7 | 1.1 | 0.35 | 1.1 | 7.2 | 2.8 | 5 | 0.5 | 2.3 | ||||
| 16 | 1 | 17.3 | 3.8 | 2 | 1.7 | 0.6 | 16.8 | 1.1 | 0.4 | 1.2 | 8 | 3.4 | 5.5 | 1 | 2.6 | ||||
| 17 | 1 | 18.3 | +0.42 -0.13 |
3.9 | 2.1 | 1.7 | 0.65 | 17.8 | 1.1 | 0.4 | 1.2 | 8.8 | 3.6 | 6 | 1 | 2.5 | 19 | ||
| 18 | 11 | 19.5 | 4.1 | 2.2 | 2 | 0.74 | 19 | +0.13 0 (H11) |
1.1 | 0.5 | 1.5 | 9.4 | 4.8 | 6.5 | 1 | 2.6 | |||
| 19 | 1 | 20.5 | 4.1 | 2.2 | 2 | 0.83 | 20 | 1.1 | 0.5 | 1.5 | 10.4 | 5.1 | 6.8 | 1 | 2.5 | ||||
| 20 | 1 | 21.5 | 4.2 | 2.3 | 2 | 0.9 | 21 | 1.1 | 0.5 | 1.5 | 11.2 | 5.4 | 7.2 | 1 | 2.5 | ||||
| 21 | 1 | 22.5 | 4.2 | 2.4 | 2 | 1 | 22 | 1.1 | 0.5 | 1.5 | 12.2 | 5.7 | 7.6 | 1 | 2.6 | ||||
| 22 | 1 | 23.5 | 4.2 | 2.5 | 2 | 1.1 | 23 | 1.1 | 0.5 | 1.5 | 13.2 | 5.9 | 8 | 1 | 2.7 | ||||
| 24 | 1.2 | 25.9 | +0.42 -0.21 |
4.4 | 2.6 | 2 | 1.42 | 25.2 | +0.21 0 (H12) |
1.3 | 0.6 | 1.8 | 14.8 | 7.7 | 13.9 | 1 | 4.6 | ||
| 25 | 1.2 | 26.9 | 4.5 | 2.7 | 2 | 1.5 | 26.2 | 1.3 | 0.6 | 1.8 | 15.5 | 8 | 14.6 | 1 | 4.7 | ||||
| 26 | 1.2 | 27.9 | 4.7 | 2.8 | 2 | 1.6 | 27.2 | 1.3 | 0.6 | 1.8 | 16.1 | 8.4 | 13.85 | 1 | 4.6 | ||||
| 28 | 1.2 | 30.1 | +0.5 -0.25 |
4.8 | 2.9 | 2 | 1.8 | 29.4 | 1.3 | 0.7 | 2.1 | 17.9 | 10.5 | 13.3 | 1 | 4.5 | |||
| 30 | 1.2 | 32.1 | 4.8 | 3 | 2 | 20.6 | 31.4 | +0.25 0 (H12) |
1.3 | 0.7 | 2.1 | 19.9 | 11.3 | 137 | 1 | 4.6 | |||
| 31 | 1.2 | 33.4 | 5.2 | 3.2 | 2.5 | 2.1 | 32.7 | 1.3 | 0.85 | 2.6 | 20 | 14.1 | 13.8 | 1 | 4.7 | ||||
| 32 | 1.2 | 34.4 | 5.4 | 3.2 | 2.5 | 2.21 | 33.7 | 1.3 | 0.85 | 2.6 | 20.6 | 14.6 | 13.8 | 1 | 4.7 | ||||
| 34 | 1.5 | 36.5 | 5.4 | 3.3 | 2.5 | 3.2 | 35.7 | 1.6 | 0.85 | 2.6 | 22.6 | 15.4 | 26.2 | 1.5 | 6.3 | ||||
| 35 | 1.5 | 37.8 | 5.4 | 3.4 | 2.5 | 3.54 | 37 | 1.6 | 1 | 3 | 23.6 | 18.8 | 26.9 | 1.5 | 6.4 | ||||
| 36 | 1.5 | 38.8 | 5.4 | 3.5 | 2.5 | 3.7 | 38 | 1.6 | 1 | 3 | 24.6 | 19.4 | 26.4 | 1.5 | 6.4 | ||||
| 37 | 1.5 | 39.8 | 5.5 | 3.6 | 2.5 | 3.74 | 39 | 1.6 | 1 | 3 | 25.4 | 19.8 | 27.1 | 1.5 | 6.5 | ||||
| 38 | 1.5 | 40.8 | 5.5 | 3.7 | 2.5 | 3.9 | 40 | 1.6 | 1 | 3 | 26..4 | 22.5 | 28.2 | 1.5 | 6.7 | ||||
| 40 | 1.75 | 43.5 | 5.8 | 3.9 | 2.5 | 4.7 | 42.5 | 1.85 | 1.25 | 3.8 | 27.8 | 27 | 44.6 | 2 | 8.3 | ||||
| 42 | 1.75 | 45.5 | 5.9 | 4.1 | 2.5 | 5.4 | 44.5 | 1.85 | 1.25 | 3.8 | 29.6 | 28.4 | 44.7 | 2 | 8.4 | ||||
| 45 | 1.75 | 48.5 | 6.2 | 4.3 | 2.5 | 6 | 47.5 | 1.85 | 1.25 | 3.8 | 32 | 30.2 | 43.1 | 2 | 8.2 | ||||
| 47 | 1.75 | 50.5 | +1.1 -0.46 |
6.4 | 4.4 | 2.5 | 6.1 | 49.5 | 1.85 | 1.25 | 3.8 | 33.5 | 31.4 | 43.5 | 2 | 8.3 | 40 | ||
| 48 | 1.75 | 51.5 | 6.4 | 4.5 | 2.5 | 6.7 | 50.5 | +0.30 0 (H12) |
1.85 | 1.25 | 3.8 | 34.5 | 32 | 43.2 | 2 | 8.4 | |||
| 50 | 2 | 0 -0.07 |
54.2 | 6.5 | 4.6 | 2.5 | 7.3 | 53 | 2.15 | 1.5 | 4.5 | 36.3 | 40.5 | 60.8 | 2 | 12.1 | |||
| 52 | 2 | 26.2 | 6.7 | 4.7 | 2.5 | 8.2 | 55 | 2.15 | 1.5 | 4.5 | 37.9 | 42 | 60.25 | 2 | 12 | ||||
| 55 | 2 | 29.2 | 6.8 | 5 | 2.5 | 8.3 | 58 | 2.15 | 1.5 | 4.5 | 40.7 | 44.4 | 60.3 | 2 | 12.5 | ||||
| 56 | 2 | 60.2 | 6.8 | 5.1 | 2.5 | 8.7 | 59 | 2.65 | 1.5 | 4.5 | 41.7 | 45.2 | 60.3 | 2 | 12.6 | ||||
| 58 | 2 | 62.2 | 6.9 | 5.2 | 2.5 | 10.5 | 61 | 2.65 | 1.5 | 4.5 | 43.5 | 46.7 | 60.8 | 2 | 12.7 | ||||
| 60 | 2 | 64.2 | 7.3 | 5.4 | 2.5 | 11.1 | 63 | 2.65 | 1.5 | 4.5 | 44.7 | 48.3 | 61 | 2 | 13 | ||||
| 62 | 2 | 66.2 | 7.3 | 5.5 | 2.5 | 11.2 | 65 | 2.65 | 1.5 | 4.5 | 46.7 | 49.8 | 60.9 | 2 | 13 | ||||
| 63 | 2 | 67.2 | 7.3 | 5.6 | 2.5 | 12.4 | 66 | 2.65 | 1.5 | 4.5 | 47.7 | 50.6 | 60.8 | 2 | 13 | ||||
| 65 | 2.5 | 69.2 | 7.6 | 5.8 | 3 | 14.3 | 68 | 2.65 | 1.5 | 4.5 | 49 | 51.8 | 121 | 2.5 | 20.8 | ||||
| 68 | 2.5 | 72.5 | 7.8 | 6.1 | 3 | 16 | 71 | 2.65 | 1.5 | 4.5 | 51.6 | 54.5 | 121.5 | 2.5 | 21.2 | ||||
| 70 | 2.5 | 74.5 | 7.8 | 6.2 | 3 | 16.5 | 73 | 2.65 | 1.5 | 4.5 | 53.6 | 56.32 | 119 | 2.5 | 21 | ||||
| 72 | 2.5 | 76.6 | 7.8 | 6.4 | 3 | 18.1 | 75 | 2.65 | 1.5 | 4.5 | 55.6 | 58 | 119.2 | 2.5 | 21 | ||||
| 75 | 2.5 | 79.5 | 7.8 | 6.6 | 3 | 18.8 | 78 | 2.65 | 1.5 | 4.5 | 58.6 | 60 | 118 | 2.5 | 21 | ||||
| 78 | 2.5 | 82.5 | +1.3 -0.54 |
8.5 | 6.8 | 3 | 20.4 | 81 | +0.35 0 (H13) |
2.65 | 1.5 | 4.5 | 60.1 | 62.3 | 122.5 | 2.5 | 21.8 | ||
| 80 | 2.5 | 85.5 | 8.5 | 7 | 3 | 22 | 83.5 | 2.65 | 1.75 | 5.3 | 62.1 | 74.6 | 120.9 | 2.5 | 21.8 | ||||
| 82 | 2.5 | 87.5 | 8.5 | 7 | 3 | 24 | 85.5 | 2.65 | 1.75 | 5.3 | 64.1 | 76.6 | 119 | 2.5 | 21.4 | ||||
| 85 | 3 | 0 -0.08 |
90.5 | 8.6 | 7.2 | 3.5 | 25.3 | 88.5 | 3.15 | 1.75 | 5.3 | 66.9 | 79.5 | 201.4 | 3 | 31.2 | 85 | ||
| 88 | 3 | 93.5 | 8.6 | 7.4 | 3.5 | 28 | 91.5 | 3.15 | 1.75 | 5.3 | 69.9 | 82.1 | 209.4 | 3 | 32.7 | ||||
| 90 | 3 | 95.55 | 8.6 | 7.6 | 3.5 | 31 | 93.5 | 3.15 | 1.75 | 5.3 | 71.9 | 84 | 199 | 3 | 31.4 | ||||
| 92 | 3 | 97.5 | 8.7 | 7.8 | 3.5 | 32 | 95.5 | 3.15 | 1.75 | 5.3 | 73.7 | 85.8 | 201 | 3 | 32 | ||||
| 98 | 3 | 100.5 | 8.8 | 8.1 | 3.5 | 35 | 98.5 | 3.15 | 1.75 | 5.3 | 76.5 | 88.6 | 195 | 3 | 31.4 | ||||
| 100 | 3 | 103.5 | 9 | 8.3 | 3.5 | 37 | 101.5 | 3.15 | 1.75 | 5.3 | 79 | 91.3 | 191 | 3 | 31 | ||||
| 102 | 4 | 0 -0.1 |
105.5 | 9.2 | 8.4 | 3.5 | 38 | 103.5 | 3.15 | 1.75 | 5.3 | 80.6 | 93.1 | 188 | 3 | 30.8 | |||
| 105 | 4 | 108 | 9.5 | 8.5 | 3.5 | 55 | 106 | +0.54 0 (H13) |
4.15 | 2 | 6 | 82 | 108.8 | 439 | 3 | 72.6 | |||
| 108 | 4 | 112 | 9.5 | 8.7 | 3.5 | 56 | 109 | 4.15 | 2 | 6 | 85 | 112 | 436 | 3 | 73 | ||||
| 110 | 4 | 115 | 9.5 | 8.9 | 3.5 | 60 | 112 | 4.15 | 2 | 6 | 88 | 115 | 419 | 3 | 71 | ||||
| 121 | 4 | 117 | 10.4 | 9 | 3.5 | 64.5 | 114 | 4.15 | 2 | 6 | 88.2 | 117 | 415 | 3 | 71 | ||||
| 112 | 4 | 119 | 10.5 | 9.1 | 3.5 | 72 | 116 | 4.15 | 2 | 6 | 90 | 119 | 418 | 3 | 72 | ||||
| 115 | 4 | 122 | +1.5 -0.63 |
10.5 | 9.3 | 3.5 | 74.5 | 119 | 4.15 | 2 | 6 | 93 | 122 | 409 | 3 | 71.2 | |||
| 120 | 4 | 127 | 11 | 9.7 | 3.5 | 77 | 124 | +0.63 0 (H13) |
4.15 | 2 | 6 | 96.9 | 127 | 396 | 3 | 70 | |||
| 125 | 4 | 132 | 11 | 10 | 4 | 79 | 129 | 4.15 | 2 | 6 | 101.9 | 132 | 385 | 3 | 70 | ||||
| 130 | 4 | 137 | 11 | 10.2 | 4 | 82 | 134 | 4.15 | 2 | 6 | 106.9 | 138 | 374 | 3 | 69 | ||||
| 135 | 4 | 142 | 11.2 | 10.5 | 4 | 84 | 139 | 4.15 | 2 | 6 | 111.5 | 143 | 358 | 3 | 67 | ||||
| 140 | 4 | 147 | 11.2 | 10.7 | 4 | 87.5 | 144 | 4.15 | 2 | 6 | 116.5 | 148 | 350 | 3 | 66.5 | ||||
| 145 | 4 | 152 | 11.4 | 10.9 | 4 | 93 | 149 | 4.15 | 2 | 6 | 121 | 153 | 336 | 3 | 65 | ||||
| 150 | 4 | 158 | 12 | 11.2 | 4 | 105 | 155 | 4.15 | 2.5 | 7.5
|
124.8 | 191 | 326 | 3 | 64 | ||||
| 155 | 4 | 164 | 12 | 11.4 | 4 | 107 | 160 | 4.15 | 2.5 | 7.5 | 129.8 | 206 | 324 | 3.5 | 55 | ||||
| 160 | 4 | 169 | 13 | 11.6 | 4 | 110 | 165 | 4.15 | 2.5 | 7.5 | 132.7 | 212 | 321 | 3.5 | 54.5 | ||||
| 165 | 4 | 174.5 | 13 | 11.8 | 4 | 125 | 170 | 4.15 | 2.5 | 7.5 | 137.7 | 219 | 319 | 3.5 | 54 | ||||
| 170 | 4 | 179.5 | 13.5 | 12.2 | 4 | 140 | 175 | 4.15 | 2.5 | 7.5 | 141.6 | 225 | 349 | 3.5
|
59 | ||||
| 175 | 4 | 184.5 | +1.7 -0.72 |
13.5 | 12.7 | 4 | 150 | 180 | 4.15 | 2.5 | 7.5 | 146.6 | 232 | 351 | 3.5 | 59 | |||
| 180 | 4 | 189.5 | 14.2 | 13.2 | 4 | 165 | 185 | +0.72 0 (H13) |
4.15 | 2.5 | 7.5 | 150.2 | 238 | 347 | 3.5 | 58.5 | |||
| 185 | 4 | 194.5 | 14.2 | 13.7 | 4 | 170 | 190 | 4.15 | 2..5 | 7.5 | 155.2 | 245 | 349 | 3.5 | 59 | ||||
| 190 | 4 | 199.5 | 14.2 | 13.8 | 4 | 175 | 195 | 4.15 | 2.5 | 7.5 | 160.2 | 251 | 340 | 3.5 | 57.5 | ||||
| 195 | 4 | 204.5 | 14.2 | 13.8 | 4 | 183 | 200 | 4.15 | 2.5 | 7.5 | 165.2 | 258 | 330 | 3.5 | 55.5 | ||||
| 200 | 4 | 209.5 | 14.2 | 14 | 4 | 195 | 205 | 4.15 | 2.5 | 7.5 | 170.2 | 265 | 325 | 3.5 | 55 | ||||
| 210 | 5 | 0 -0.12 |
222 | 14.2 | 14 | 4 | 270 | 216 | 5.15 | 3 | 9 | 180.2 | 333 | 601 | 4 | 89.5 | |||
| 220 | 5 | 232 | 14.2 | 14 | 4 | 315 | 226 | 5.15 | 3 | 9 | 190.2 | 349 | 574 | 4 | 85 | ||||
| 230 | 5 | 242 | 14.2 | 14 | 4 | 330 | 236 | 5.15 | 3 | 9 | 200.2 | 365 | 549 | 4 | 81 | ||||
| 240 | 5 | 252 | +2.0 -0.81 |
14.2 | 14 | 4 | 345 | 246 | 5.15 | 3 | 9 | 210.2 | 380 | 525 | 4 | 77.5 | |||
| 250 | 5 | 262 | 14.2 | 14 | 4 | 360 | 256 | 5.15 | 3 | 9 | 220.2 | 396 | 504 | 4 | 75 | ||||
| 260 | 5 | 275 | 16.2 | 16 | 5 | 375 | 268 | +0.81 0 (H13) |
5.15 | 4 | 12 | 226 | 553 | 538 | 4 | 80 | |||
| 270 | 5 | 285 | 16.2 | 16 | 5 | 388 | 278 | 5.15 | 4 | 12 | 236 | 573 | 518 | 4 | 77 | ||||
| 280 | 5 | 295 | 16.2 | 16 | 5 | 400 | 288 | 5.15 | 4 | 12 | 246 | 593 | 499 | 4 | 74 | ||||
| 290 | 5 | 305 | 16.2 | 16 | 5 | 415 | 298 | 5.15 | 4 | 12 | 256 | 615 | 482 | 4 | 71.5 | ||||
| 300 | 5 | 315 | 16.2 | 16 | 5 | 435 | 308 | 5.15 | 4 | 12 | 266 | 636 | 466 | 4 | 69 | ||||
