DIN 11024 D Spring Cotter of Bolts
Equivalent Standards

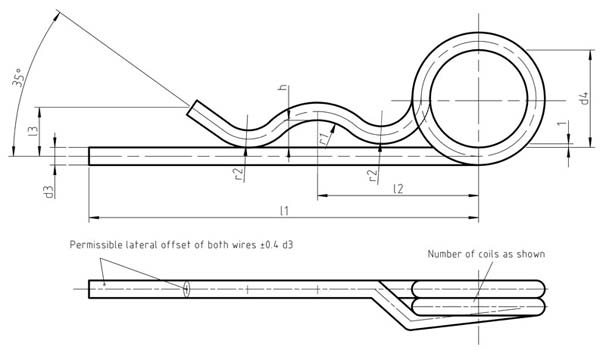

Dimensions for DIN 11024 D Spring cotters of a Bolts
| Axle or Shaft | Cotter Size | Weight in kg per 100 piece ≈ |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Hole Diameter d1 H13 |
Outer diameter d2 |
d3 | d4 | l1 | l2 | l3 | h | r1 | r2 | |
| 2.5 | 9 - 11.2 | 2.25 | 20 | 42 | 24 | 5.5 | 2.5 | 5.6 | 4 | 0.59 |
| 3.2 | 11.2 - 14 | 2.8 | 20 | 48 | 26 | 7 | 3 | 7 | 5 | 0.99 |
| 4 | 14 - 20 | 3.6 | 20 | 64 | 32 | 10 | 4.5 | 10 | 6.5 | 1.89 |
| 5 | 20 - 26 | 4.5 | 25 | 80 | 39 | 12.5 | 7 | 13 | 8 | 3.54 |
| 6.3 | 26 - 34 | 5.6 | 25 | 97 | 45 | 16 | 9 | 17 | 10 | 6.18 |
| 7 | 34 - 45 | 6.3 | 30 | 125 | 56 | 21 | 12.5 | 22.5 | 11.5 | 9.7 |
| 8 | 45 - 56 | 7 | 30 | 150 | 63 | 25.5 | 17.5 | 28 | 12.5 | 13.4 |
Material: Wire ... A DIN 2076, quality requirements according to DIN 17 223
Execution: ends cut free from burrs
Surface treatment: e.g. phosphated, galvanized, cadmium-plated
Permissible variations on turn diameter: coarse according to DIN 2095
1) It is recommended to connect the spring otter with the unit to be locked so that it cannot be lost.
