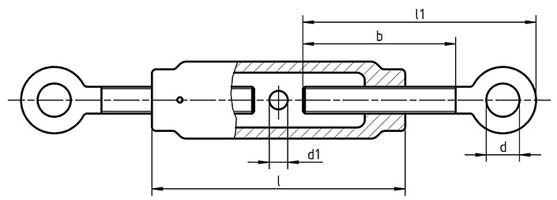

Dimensions for DIN 1478 EE Turnbuckles with 2 Eyes

Thread	L	L1	b	d1 min	d1 max	d
M6	110	74	50	5.7	6.3	10
M8	110	80	52	7.5	8.5	11
M10	125	95	59	7.5	8.5	15
M12	125	107	66	9.5	10.5	17
M16	170	146	85	9.5	10.5	22
M20	200	170	100	11.5	12.5	24
M24	255	213	134	11.5	12.5	33
M30	255	255	150	15.5	16.5	39
M36	295	260	150	15.5	16.5	37
M42	330	285	165	19.5	20.5	48
M48	355	335	185	19.5	20.5	58
