DIN 1480 PP Turnbuckles with plane ends, forged (open form)
Equivalent Standards

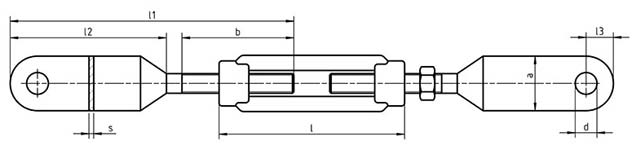

Dimensions for DIN 1480 PP Turnbuckles with plane ends, forged (open form)
| Thread | b | L2 | L1 | d | s | a | L3 |
|---|---|---|---|---|---|---|---|
| M8 | 75 | 50 | 125 | 9 | 4 | 20 | 11 |
| M10 | 90 | 60 | 150 | 10.5 | 4 | 25 | 13 |
| M12 | 91 | 74 | 165 | 13 | 5 | 30 | 16 |
| M16 | 105 | 135 | 240 | 14 | 8 | 40 | 20 |
| M20 | 105 | 135 | 240 | 17 | 9 | 44 | 26 |
| M24 | 160 | 45 | 305 | 22 | 10 | 70 | 43 |
| M30 | 170 | 175 | 350 | 25 | 17 | 70 | 43 |
