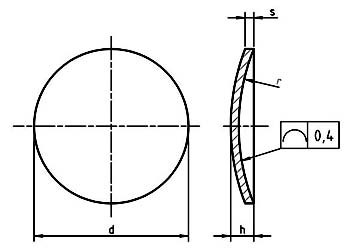

Dimensions for DIN 470 Sealing washer

d js11	h	r	s	weight kg/1000pcs
3	1.2	3	0.8	0.047
4	1.34	4	0.8	0.084
5	1.35	6	0.8	0.132
6	1.67	7	1	0.236
8	1.94	9	1	0.517
10	2.67	12	1.6	1.05
12	2.77	16	1.6	1.49
14	2.94	19	1.6	2.02
16	3.11	22	1.6	2.63
18	3.28	25	1.6	3.35
20	3.45	28	1.6	4.12
22	4.09	30	2	7.1
25	4.38	34	2	8.98
28	4.53	40	2	11.1
30	4.77	42	2	12.6
32	4.95	45	2	13.2
34	5.11	48	2	14.8
36	5.36	50	2	16.7
38	5.6	52	2	19.7
40	5.7	56	2	20.5
42	5.8	60	2	22.6
45	6.15	63	2	26.1
48	6.38	68	2	29.5
50	6.62	70	2	32.1
52	6.66	75	2	34.5
56	7.06	80	2	40.2
60	7.47	85	2	46.3
63	7.7	90	2	50.9
80	10.41	112	3	134
100	12.23	140	3	204
125	14.2	180	3	313
