DIN 6335 D Cross handles Form D with through holes

DIN 6335 D

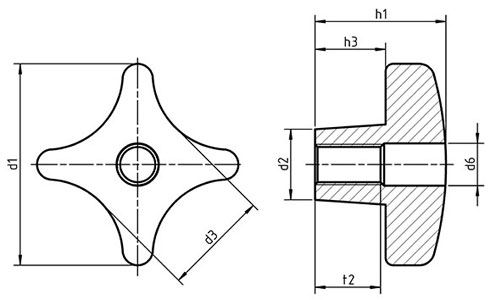

Dimensions for DIN 6335 D Cross handles Form D with through holes

Size d1 d2 d3 d6 h1 h3 t2
M6 32 12 18 6.4 21 10 10
M8 40 14 21 8.4 26 14 13
M10 50 18 25 10.5 34 20 16
M12 63 20 32 13 42 25 20
M16 80 25 40 17 52 30 20
M20 100 32 48 21 65 38 25
