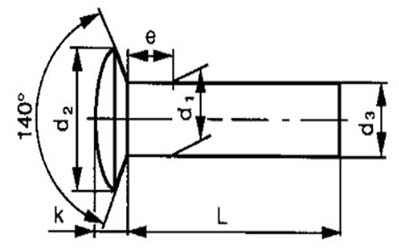

Dimensions of Mushroom Head Rivets

No.	d1	d2	d3 (min)	E (max)	k	L
6	3	6	2.87	1.5	1.5	8
7	3.3	6.6	3.17	1.7	1.7	8.5
8	3.5	7	3.37	1.75	1.8	10
9	4	8	3.87	2	2.1	12
12	5	10	4.82	2.5	2.5	16
15	6	12	5.82	3	3	20
