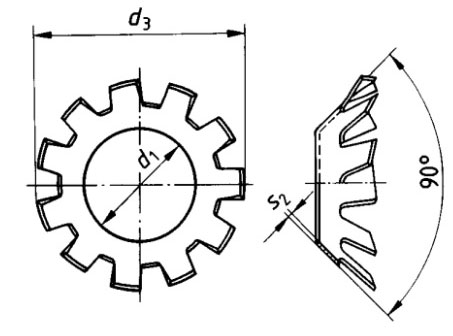

Dimensions for DIN 6797 V - Toothed lock washers, conical V

Nominal Size	d1		d3	s2	Teeth min.	Weight kg/1000pcs	For Thread
	Nominal size min	max	approx.
2.2	2.2	2.34	4.2	0.2	6	0.02	M2
2.7	2.7	2.84	5.1	0.2	6	0.025	M2.5
3.2	3.2	3.38	6	0.2	6	0.025	M3
3.7	3	3.88	7	0.25	6	0.04	M3.5
4.3	4.3	4.48	8	0.25	8	0.05	M4
5.3	5.3	5.48	9.8	0.3	8	0.12	M5
6.4	6.4	6.62	11.8	0.4	10	0.2	M6
8.4	8.4	8.62	15.3	0.4	10	0.4	M8
10.5	10.5	10.77	19	0.5	10	0.7	M10
13	13	13.27	23	0.5	10	1.2	M12
15	15	15.27	26.2	0.6	12	1.3	M14
17	17	17.27	30.2	0.6	12	1.3	M16
