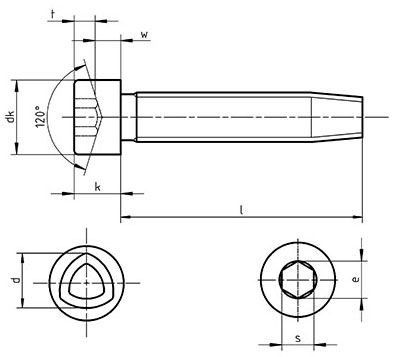

Dimensions for DIN 7500 E Thread forming screws with hexagon head

Thread	dk max	k max	s max	t min.
M2	3.98	2	1.56	1
M2.5	4.68	2.5	2.06	1.1
M3	5.68	3	2.58	1.3
M4	7.22	4	3.08	2
M5	8.72	5	4.095	2.5
M6	10.22	6	5.14	3
M8	13.27	8	6.4	4
M10	16.27	10	8.175	5
