DIN 7504 PTX Self Drilling screws

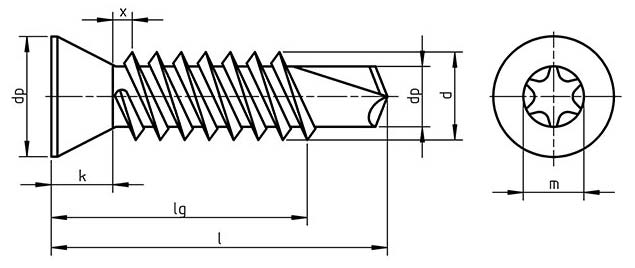

Dimensions for DIN 7504 PTX Self Drilling screws
| d | dk max | k max | s TORX |
|---|---|---|---|
| 2.9 | 5.5 | 1.7 | 10 |
| 3.5 | 6.8 | 2.1 | 15 |
| 3.9 | 7.5 | 2.3 | 20 |
| 4.2 | 8.1 | 2.5 | 20 |
| 4.8 | 9.5 | 3 | 25 |
| 5.5 | 10.8 | 3.4 | 25 |
| 6.3 | 12.4 | 3.8 | 30 |
| d | dk max | k max | s TORX |
|---|---|---|---|
| 2.9 | 5.5 | 1.7 | 10 |
| 3.5 | 6.8 | 2.1 | 15 |
| 3.9 | 7.5 | 2.3 | 20 |
| 4.2 | 8.1 | 2.5 | 20 |
| 4.8 | 9.5 | 3 | 25 |
| 5.5 | 10.8 | 3.4 | 25 |
| 6.3 | 12.4 | 3.8 | 30 |
