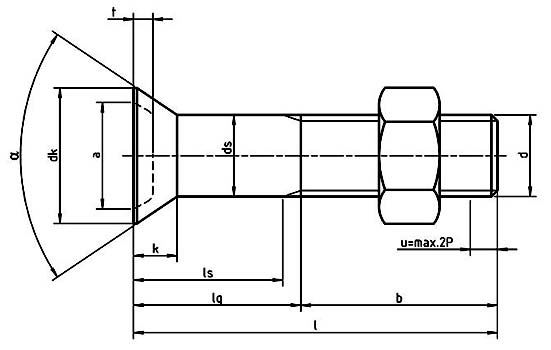

DIN 7969 Slotted countersunk head bolts for structural steel bolting
Dimensions for DIN 7969 Slotted countersunk head bolts for structural steel bolting
| b1 | b2 | dk | k | t |
|---|---|---|---|---|
| 20 | 25 | 17 | 5.5 | 3 |
| 22 | 28 | 21 | 7 | 4 |
| 28 | 35 | 28 | 9 | 4 |
| 32 | 40 | 32 | 11.5 | 4 |
| 35 | 45 | 35 | 12 | 5 |
| 38 | 50 | 38 | 13 | 6 |
