DIN 975 TR Threaded rods, trapezoidal thread

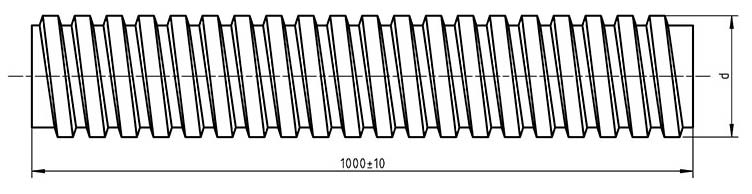

Dimensions for DIN 975 TR Threaded rods, trapezoidal thread
| Thread | Pitch |
|---|---|
| Tr 10 | 2 |
| Tr 10 | 3 |
| Tr 12 | 2 |
| Tr 12 | 3 |
| Tr 14 | 3 |
| Tr 14 | 4 |
| Tr 16 | 4 |
| Tr 18 | 4 |
| Tr 20 | 4 |
| Tr 22 | 5 |
| Tr 24 | 5 |
| Tr 26 | 5 |
| Tr 28 | 5 |
| Tr 30 | 6 |
| Tr 32 | 6 |
| Tr 36 | 6 |
| Tr 36 | 5 |
| Tr 40 | 7 |
| Tr 44 | 7 |
| Tr 48 | 8 |
| Tr 50 | 8 |
| Tr 52 | 8 |
| Tr 55 | 9 |
| Tr 60 | 9 |
| Tr 70 | 10 |
| Tr 80 | 10 |
| Tr 90 | 12 |
| Tr 100 | 12 |
