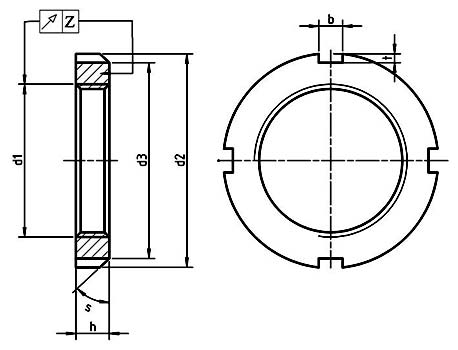

Dimensions for DIN 981 Locknuts
| d1 |
d2 |
d3 |
h |
b |
t |
z |
weight kg/pc |
marking |
| n13 |
h13 |
h13 |
JS14 |
H17 |
| M10x0.75 |
18 |
13.5 |
4 |
3 |
2 |
0.04 |
0.004 |
KM0 |
| M12x1 |
22 |
17 |
4 |
3 |
2 |
0.04 |
0.007 |
KM1 |
| M15x1 |
25 |
21 |
5 |
4 |
2 |
0.04 |
0.01 |
KM2 |
| M17x1 |
28 |
24 |
5 |
4 |
2 |
0.04 |
0.013 |
KM3 |
| M20x1 |
32 |
26 |
6 |
4 |
2 |
0.04 |
0.019 |
KM4 |
| M24x1.5 |
38 |
32 |
7 |
5 |
2 |
0.04 |
0.025 |
KM5 |
| M30x1.5 |
45 |
38 |
7 |
5 |
2 |
0.04 |
0.043 |
KM6 |
| M35x1.5 |
52 |
44 |
8 |
5 |
2 |
0.04 |
0.053 |
KM7 |
| M40x1.5 |
58 |
50 |
9 |
6 |
2.5 |
0.04 |
0.085 |
KM8 |
| M45x1.5 |
65 |
56 |
10 |
6 |
2.5 |
0.04 |
0.119 |
KM9 |
| M50x1.5 |
70 |
61 |
11 |
6 |
2.5 |
0.04 |
0.148 |
KM10 |
| M55x2 |
75 |
67 |
11 |
7 |
3 |
0.05 |
0.158 |
KM11 |
| M60x2 |
80 |
73 |
11 |
7 |
3 |
0.05 |
0.174 |
KM12 |
| M65x2 |
85 |
79 |
12 |
7 |
3 |
0.05 |
0.203 |
KM13 |
| M70x2 |
92 |
85 |
12 |
8 |
3.5 |
0.05 |
0.242 |
KM14 |
| M75x2 |
98 |
90 |
13 |
8 |
3.5 |
0.05 |
0.287 |
KM15 |
| M80x2 |
105 |
95 |
15 |
8 |
3.5 |
0.05 |
0.397 |
KM16 |
| M85x2 |
110 |
102 |
16 |
8 |
3.5 |
0.05 |
0.451 |
KM17 |
| M90x2 |
120 |
108 |
16 |
10 |
4 |
0.05 |
0.556 |
KM18 |
| M95x2 |
125 |
113 |
17 |
10 |
4 |
0.05 |
0.658 |
KM19 |
| M100x2 |
130 |
120 |
18 |
10 |
4 |
0.05 |
0.698 |
KM20 |
| M105x2 |
140 |
126 |
18 |
12 |
5 |
0.05 |
0.845 |
KM21 |
| M110x2 |
145 |
133 |
19 |
12 |
5 |
0.05 |
0.965 |
KM22 |
| M115x2 |
150 |
137 |
19 |
12 |
5 |
0.05 |
1.01 |
KM23 |
| M120x2 |
145 |
135 |
20 |
12 |
5 |
0.05 |
0.78 |
KML24 |
| M120x2 |
155 |
138 |
20 |
12 |
5 |
0.05 |
1.08 |
KM24 |
| M125x2 |
160 |
148 |
21 |
12 |
5 |
0.05 |
1.19 |
KM25 |
| M130x2 |
155 |
145 |
21 |
12 |
5 |
0.06 |
0.88 |
KML26 |
| M130x2 |
165 |
149 |
21 |
12 |
5 |
0.06 |
1.25 |
KM26 |
| M135x2 |
175 |
160 |
22 |
14 |
6 |
0.06 |
1.55 |
KM27 |
| M140x2 |
165 |
155 |
22 |
12 |
5 |
0.06 |
0.99 |
KML28 |
