DIN 984 Internal retaining rings with lugs

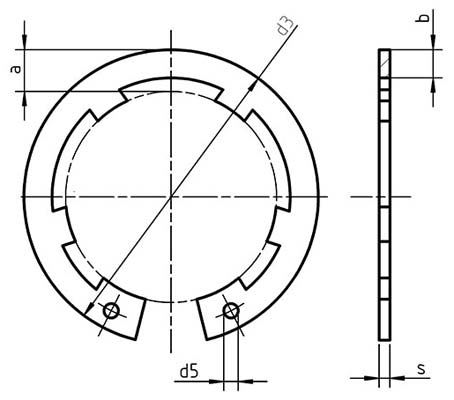

Dimensions for DIN 984 Internal retaining rings with lugs
| d3 | a max | b | d5 min | s |
|---|---|---|---|---|
| 18.3 | 3.7 | 2.2 | 1.7 | 1.0 |
| 19.5 | 3.8 | 2.3 | 2.0 | 1.0 |
| 20.5 | 3.8 | 2.3 | 2.0 | 1.0 |
| 21.5 | 3.9 | 2.4 | 2.0 | 1.0 |
| 23.5 | 4.0 | 2.6 | 2.0 | 1.0 |
| 25.9 | 4.2 | 2.6 | 2.0 | 1.2 |
| 28.5 | 4.4 | 2.8 | 2.0 | 1.2 |
| 29.1 | 4.5 | 2.9 | 2.0 | 1.2 |
| 32.1 | 4.9 | 3.2 | 2.0 | 1.2 |
| 34.4 | 5.1 | 3.3 | 2.5 | 1.2 |
| 36.5 | 5.3 | 3.4 | 2.5 | 1.5 |
| 37.8 | 5.5 | 3.6 | 2.5 | 1.5 |
| 38.8 | 5.6 | 3.6 | 2.5 | 1.5 |
| 40.5 | 6.1 | 3.8 | 2.5 | 1.5 |
| 43.5 | 7.2 | 4.0 | 2.5 | 1.75 |
| 45.5 | 7.2 | 4.1 | 2.5 | 1.75 |
| 48.5 | 7.2 | 4.3 | 2.5 | 1.75 |
| 50.5 | 7.2 | 4.5 | 2.5 | 1.75 |
| 54.2 | 8.2 | 4.7 | 2.5 | 2.0 |
| 56.2 | 8.2 | 4.7 | 2.5 | 2.0 |
| 61.2 | 8.2 | 5.2 | 2.5 | 2.0 |
| 79.5 | 10.2 | 6.6 | 3.0 | 2.5 |
