ISO 10512 : Prevailing Torque Type Hexagon Thin Nuts (with Non Metallic Insert) with metric fine threads

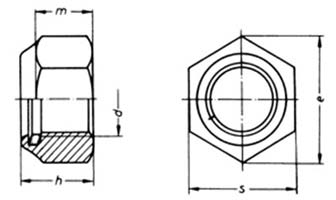

Dimensions of Prevailing Torque Type Hexagon Thin Nuts with metric fine threads

d mm	s	e min.	m	h max.
M 3	5.5	6.08	2.7	3.9
M 4	7	7.74	3.2	5
M 5	8	8.87	3.5	5
M 6	10	11.05	4.5	6
M 8	13	14.38	6	6.76
M 10	16	18.9	7	8.56
M 12	18	21.1	9	10.23
M 14	21	24.49	10	11.23
M 16	24	26.75	11	12.42
M 18	27	30.14	14	14.90
M 20	30	33.53	15	17.80
M 24	36	39.98	16	25.50
M 27	41	45.63	19	27
M 30	46	51.28	23	30
M 36	55	61.31	28	36
