ISO 13918 : Welding Studs with External Threads
Equivalent Standards

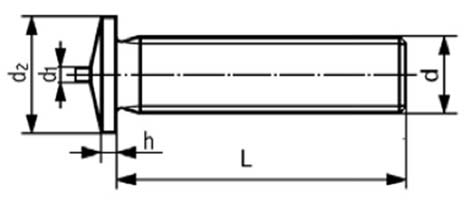

Dimensions of Welding Studs with External Threads
| d | h | d1 | d2 |
|---|---|---|---|
| M 3 | 0.6 | 0.55 | 4.5 |
| M 4 | 0.6 | 0.55 | 5.5 |
| M 5 | 0.7 | 0.8 | 6.5 |
| M 6 | 0.8 | 0.8 | 7.8 |
| M 8 | 1 | 0.5 | 9 |
| d | h | d1 | d2 |
|---|---|---|---|
| M 3 | 0.6 | 0.55 | 4.5 |
| M 4 | 0.6 | 0.55 | 5.5 |
| M 5 | 0.7 | 0.8 | 6.5 |
| M 6 | 0.8 | 0.8 | 7.8 |
| M 8 | 1 | 0.5 | 9 |
