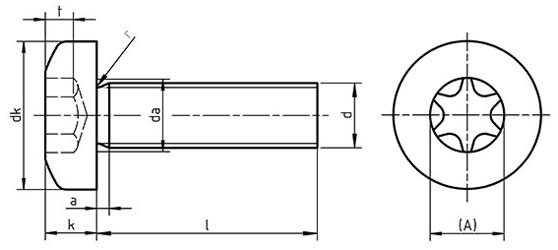

ISO 14583 Hexalobular raised cheese head
Dimensions for ISO 14583 Hexalobular raised cheese head
Thread d |
p |
a |
b |
da |
dk |
k |
r |
rf |
x |
Inner Hexalobular |
hexalobular number |
A |
t |
max |
min |
max |
nom=max |
min |
nom=max |
min |
min |
approx |
max |
ref. |
max |
min |
M 2 |
0.4 |
0.8 |
25 |
2.6 |
4 |
3.7 |
1.6 |
1.46 |
0.1 |
3.2 |
1 |
6 |
1.75 |
0.77 |
0.63 |
M 2.5 |
0.45 |
0.9 |
25 |
3.1 |
4 |
4.7 |
2.1 |
1.96 |
0.1 |
4 |
1.1 |
8 |
2.4 |
1.04 |
0.91 |
M 3 |
0.5 |
1 |
25 |
3.6 |
5.6 |
5.3 |
2.4 |
2.26 |
0.1 |
5 |
1.25 |
10 |
2.8 |
1.27 |
1.01 |
M 3.5 |
0.6 |
1.2 |
38 |
4.1 |
7 |
6.64 |
2.6 |
2.46 |
0.1 |
6 |
1.5 |
15 |
3.35 |
1.33 |
1.07 |
M 4 |
0.7 |
1.4 |
38 |
4.7 |
8 |
7.64 |
3.1 |
2.92 |
0.2 |
6.5 |
1.75 |
20 |
3.95 |
1.66 |
1.27 |
M 5 |
0.8 |
1.6 |
38 |
5.7 |
9.5 |
9.14 |
3.7 |
3.52 |
0.2 |
8 |
2 |
25 |
4.5 |
1.91 |
1.52 |
M 6 |
1 |
2 |
38 |
6.8 |
12 |
11.57 |
4.6 |
4.3 |
0.25 |
10 |
2.5 |
30 |
5.6 |
2.42 |
2.02 |
M 8 |
1.25 |
2.5 |
38 |
9.2 |
16 |
15.57 |
6 |
5.7 |
0.4 |
13 |
3.2 |
45 |
7.95 |
3.18 |
2.79 |
M 10 |
1.5 |
3 |
38 |
11.2 |
20 |
19.48 |
7.5 |
7.14 |
0.4 |
16 |
3.8 |
50 |
8.95 |
4.02 |
3.62 |
