ISO 14584 Hexalobular socket raised countersunk head screws

ISO 14584

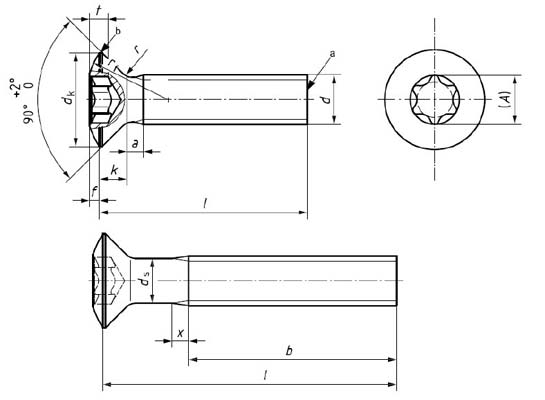

Dimensions for ISO 14584 Hexalobular socket raised countersunk head screws

thread d a max b min dk max k max TORX A t max.
M 2 0.8 25 4.4 1.2 6 1.75 0.77
M 2.5 0.9 25 5.5 1.5 8 2.4 1.04
M 3 1 25 6.3 1.65 10 2.8 1.15
M 4 1.4 38 9.4 2.7 20 3.95 1.8
M 5 1.6 38 10.4 2.7 25 4.5 2.03
M 6 2 38 12.6 3.3 30 5.6 2.42
M 8 2.5 38 17.3 4.65 45 7.95 3.31
M 10 3 38 20 5 50 8.95 3.81
