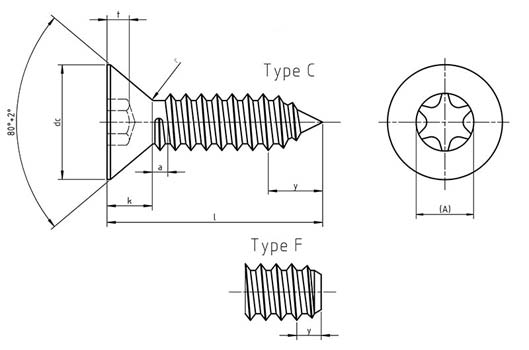

ISO 14586 Hexalobular countersunk head
Dimensions for ISO 14586 Hexalobular countersunk head
| thread d1 | d2 max | k max | TORX | A | t max |
|---|---|---|---|---|---|
| ST 2.9 | 6.3 | 1.7 | 10 | 2.8 | 0.91 |
| ST 3.5 | 8.2 | 2.35 | 15 | 3.35 | 1.3 |
| ST 4.2 | 9.4 | 2.6 | 20 | 3.95 | 1.58 |
| ST 4.8 | 10.4 | 2.8 | 25 | 4.5 | 1.78 |
| ST 5.5 | 11.5 | 3 | 25 | 4.5 | 2.03 |
| ST 6.3 | 12.6 | 3.15 | 30 | 5.6 | 2.42 |
