ISO 1481 : Slotted Pan Head Tapping Screws

Equivalent Standards

ISO 1481 : Slotted Pan Head Tapping Screws

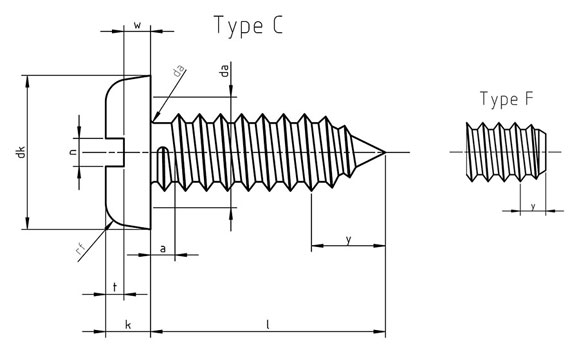

Dimensions of Slotted Pan Head Tapping Screws

d s e min. k r max.
2.9 5 5.45 2.3 0.4
3.5 5.5 6 2.6 0.5
3.9 7 7.66 (2.3) 0.5
4.2 7 7.66 3.0 0.6
4.8 8 8.79 3.8 0.7
5.5 8 8.79 4.1 0.8
6.3 10 11.05 4.7 0.9
