ISO 1482 : Slotted Countersunk Head Tapping Screws

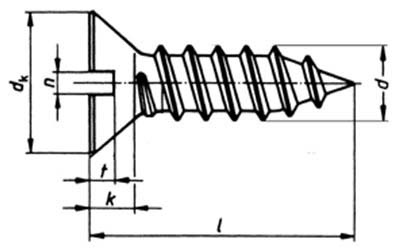

Dimensions of Slotted Countersunk Head Tapping Screws
| d | k | d2 | n | t min. |
|---|---|---|---|---|
| 2.2 | 1.1 | 3.8 | 0.6 | 0.4 |
| 2.9 | 1.7 | 5.5 | 0.8 | 0.5 |
| 3.5 | 2.35 | 7.3 | 1 | 0.6 |
| 3.9 | 2.3 | 7.5 | 1 | 0.7 |
| 4.2 | 2.6 | 8.4 | 1.2 | 0.75 |
| 4.8 | 2.8 | 9.3 | 1.2 | 0.85 |
| 5.5 | 3.0 | 10.3 | 1.6 | 1 |
| 6.3 | 3.15 | 11.3 | 1.6 | 1.2 |
