ISO 15072 Hexagon bolts with flange with metric fine pitch thread

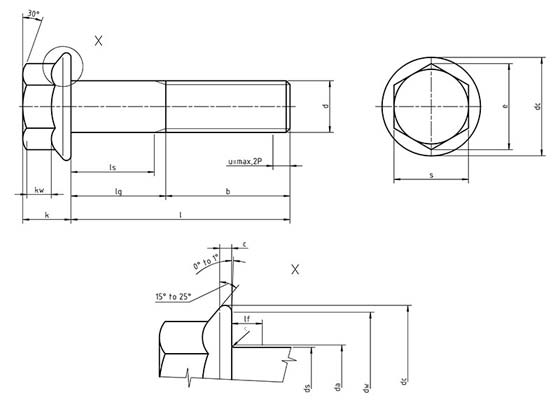

Dimensions for ISO 15072 Hexagon bolts with flange with metric fine pitch thread

thread d b min dc max ds max k max s max h min
M 8x1 22 17 8 8.5 10 1.2
M 10x1 26 20.8 10 9.7 13 1.5
M 10x1.25 26 20.8 10 9.7 13 1.5
M 12x1.25 30 24.7 12 12.1 15 1.8
M 12x1.5 30 24.7 12 12.1 15 1.8
M 16x1.5 38 32.8 16 15.2 21 2.4
