ISO 1580 : Slotted Pan Head Screws

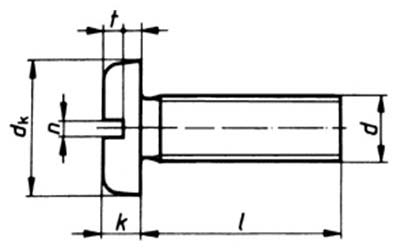

Dimensions of Slotted Pan Head Screws

d	k	dk	t min.	t max.	n
M2.5	1.6	4.5	0.7	0.9	0.6
M3	1.8	5.6	0.7	0.95	0.8
M4	2.4	8	1	1.3	1
M5	3	9.5	1.2	1.5	1.2
M6	3.6	12	1.5	1.9	1.6
M8	4.8	16	1.9	2.4	2
M10	6	20	2.4	3	2.5
