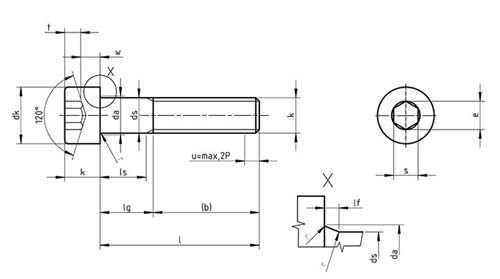

Dimensions for ISO 21269 Hexagon socket head cap screws with metric fine pitch thread

d x P		b	dk max	ds max	e min	k	r	s	t min
M8x1	--	28	13	8	6.863	8	0.4	6	4
M10x1	(M10x1.25)	32	16	10	9.149	10	0.4	8	5
M12x1.5	(M12x125)	36	18	12	11.429	12	0.6	10	6
--	(M14x1.5)	40	21	14	13.716	14	0.6	12	7
M16x1.5	--	44	24	16	15.996	16	0.6	14	8
M20x1.5	(M20x2)	52	30	20	19.437	20	0.8	17	10
M24x2	--	60	36	24	21.734	24	0.8	19	12
M30x2	--	72	45	30	25.154	30	1	22	15.5
M36x3	--	84	54	36	30.854	36	1	27	19
M42x3	--	96	63	42	36.571	42	1.2	32	24
M46x3	--	108	72	48	41.131	48	1.6	36	28
M56x4	--	124	84	56	46.831	56	2	41	34
M64x4	--	140	96	64	52.531	64	2	46	38
