ISO 4766 Slotted Set Screws, Metric

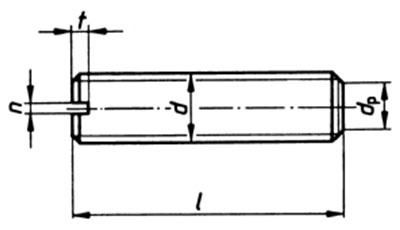

Dimensions of Slotted Set Screws
| Dimensions | n | t | dp |
|---|---|---|---|
| M 1.4 | 0.2 | 0.48 | 0.7 |
| M 1.6 | 0.25 | 0.56 | 0.8 |
| M 2 | 0.25 | 0.64 | 1 |
| M 2.5 | 0.4 | 0.72 | 1.5 |
| M 3 | 0.4 | 0.8 | 2 |
| M 4 | 0.6 | 1.12 | 2.5 |
| M 5 | 0.8 | 1.28 | 3.5 |
| M 6 | 1 | 1.6 | 4 |
| M 8 | 1.2 | 2 | 5.5 |
| M 10 | 1.6 | 2.4 | 7 |
| M 12 | 2 | 2.8 | 8.5 |
