ISO 7094R Washer with Round Hole for Timber (Wooden) Construction

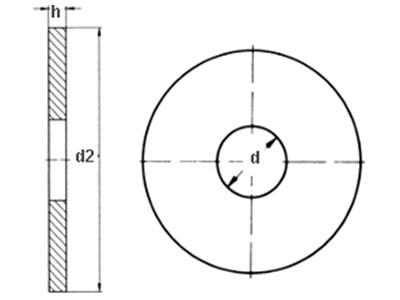

Dimensions of Washer with Round Hole for Timber Construction
| d mm | for thread size | H | d2 mm |
|---|---|---|---|
| 5.5 | M 5 | 2 | 18 |
| 6.6 | M 6 | 2 | 22 |
| 9 | M 8 | 3 | 28 |
| 11 | M 10 | 3 | 34 |
| 13.5 | M 12 | 4 | 44 |
| 17.5 | M 16 | 5 | 56 |
| 22 | M 20 | 6 | 72 |
| 24 | M 22 | 6 | 80 |
| 26 | M 24 | 6 | 85 |
| 30 | M 27 | 6 | 98 |
