ISO 7094V Washer with Square Hole for Timber (Wooden) Construction

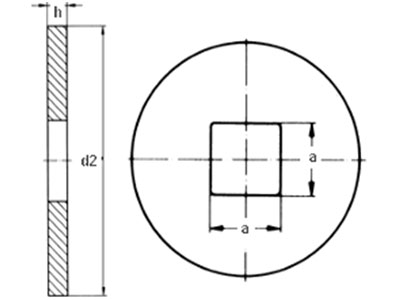

Dimensions of Washer with Square Hole for Timber Construction
| a | for screws | d2 | H |
|---|---|---|---|
| 5.5 | M 5 | 18 | 2 |
| 6.6 | M 6 | 22 | 2 |
| 9 | M 8 | 28 | 3 |
| 11 | M 10 | 34 | 3 |
| 14 | M 12 | 44 | 4 |
| 18 | M 16 | 56 | 5 |
| 22 | M 20 | 72 | 6 |
| 26 | M 24 | 85 | 6 |
| a | for screws | d2 | H |
|---|---|---|---|
| 5.5 | M 5 | 18 | 2 |
| 6.6 | M 6 | 22 | 2 |
| 9 | M 8 | 28 | 3 |
| 11 | M 10 | 34 | 3 |
| 14 | M 12 | 44 | 4 |
| 18 | M 16 | 56 | 5 |
| 22 | M 20 | 72 | 6 |
| 26 | M 24 | 85 | 6 |
