ISO 7380 FLTX Flange Button Head TORX Cap Screw

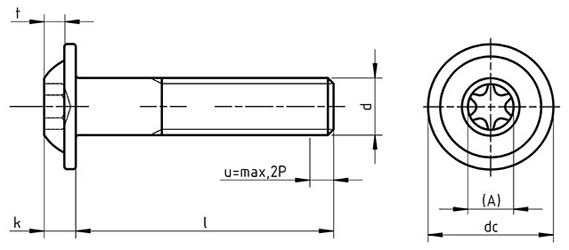

Dimensions for ISO 7380 FLTX Flange Button Head TORX Cap Screw
| thread d | dc min | k max | A | t max |
|---|---|---|---|---|
| M 3 | 5.74 | 1.65 | 10 | 1 |
| M 4 | 8.24 | 2.2 | 20 | 1.4 |
| M 5 | 10.4 | 2.75 | 25 | 1.6 |
| M 6 | 12.2 | 3.3 | 30 | 1.9 |
| M 8 | 16.4 | 4.4 | 40 | 2.6 |
| thread d | dc min | k max | A | t max |
|---|---|---|---|---|
| M 3 | 5.74 | 1.65 | 10 | 1 |
| M 4 | 8.24 | 2.2 | 20 | 1.4 |
| M 5 | 10.4 | 2.75 | 25 | 1.6 |
| M 6 | 12.2 | 3.3 | 30 | 1.9 |
| M 8 | 16.4 | 4.4 | 40 | 2.6 |
