ISO 7436 Slotted Set Screws with Cup Point

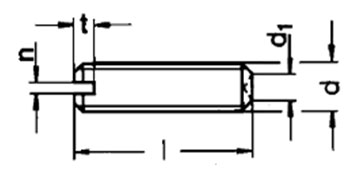

Dimensions of Slotted Set Screws with Cup Point

Dimensions	dz	n	t
M 2.5	1.2	0.4	0.72
M 3	1.4	0.4	0.8
M 4	2	0.6	1.12
M 5	2.5	0.8	1.28
M 6	3	1	1.6
M 8	5	1.2	2
M 10	6	1.6	2.4
M 12	8	2	2.5
