ISO 8735 Dowel Pin with Internal Threads, Hardened, Tolerance M6

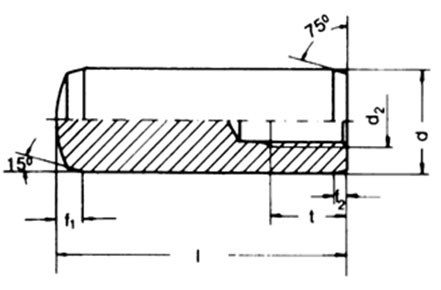

Dimensions of Dowel Pin with Internal Threads

d1 m6	a2	c1	c2	d2	t1	t2 min
4	0.5	0.4	1.3	M 3	6	7
5	0.6	0.5	1.7	M 3	6	7
6	0.8	0.6	2.1	M 4	6	10
8	1	0.8	2.6	M 5	8	12
10	1.2	1	3	M 6	10	16
12	1.6	1.2	3.8	M 6	10	16
14	1.8	1.4	4	M 8	12	20
16	2	1.6	4.7	M 8	12	20
20	2.5	2	6	M 10	16	25
25	3	2.5	6	M 16	24	34
30	4	3	7	M 20	30	42
40	5	4	8	M 20	30	42
